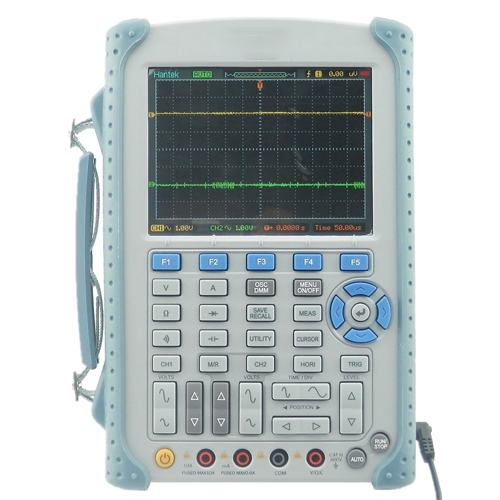

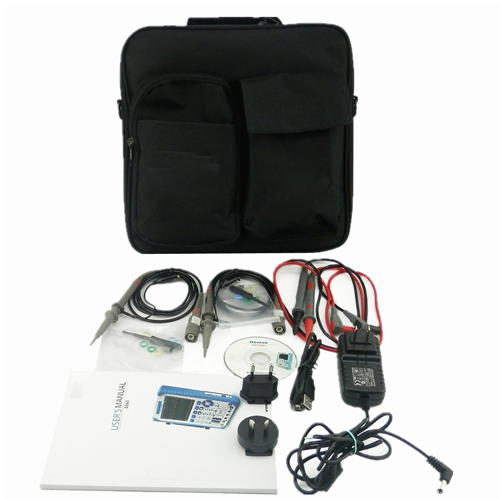

Features
- 5-in-1 handheld tool
- 60 MHz Oscilloscope, 6000 COUNTS DMM, Hardware Freq Counter
- Waveform Generator: 25 MHz, 200 MSa/s, 12-bit
- FFT, auto measurements, PASS or FAIL check, ideal for production
- High refresh rate, real-time sample rate up to 2 GSa/s, 50 GSa/s
- Multiform trigger modes, 2 times bases in ALT trigger for dual signals
- Records 1000 waveforms, user-friendly design with direct keys
- 7 in (14.48 cm) TFT Colour LCD Display with LED backlight
- USB interface, LAN option, battery-powered, compact size
- Save waveforms as jpg, bmp, excel, or word files
- LabVIEW or VB or VC Second Design instance
Technical Specifications
| Bandwidth | 60 MHz |
| Channel | 2 |
| Real Sample rate | 250 MSa/s |
| Equivalent Sample Rate | 50 GSa/s |
| Record Length | 32 K |
| Rise Time | ≤ 5.8 ns |
| Time Base Accuracy | ± 50 ppm |
| Time Base range | 5 ns/div to 1000 s/div |
| Input Impedance | 1 MΩ, 15 pF |
| VOLTS or DIV range | 10 mV/div to 5 V/div |
| A or D converter | 8 bits |
| Position Range | ± 50 V (5 V/div), ± 40 V (2 V/div to 500 mV/div), ± 2 V (200 mV/div to 50 mV/div), ± 400 mV (20 mV/div to 2 mV/div) |
| DC Gain Accuracy | ± 3 % for Normal or Average acquisition mode, 5 V/div to 10 mV/ div; ± 4 % for Normal or Average acquisition mode, 5 mV/div to 2 mV/ div |
| Bandwidth Limit | 20 MHz |
| Trigger Types | Edge, Video, Pulse, Alternative |
| Trigger Source | CH 1, CH 1 |
| Math | +, -, x, ÷, FFT, Invert |
| Cursor Measurement | Voltage difference between cursors: x V; Time difference between cursors: x T; Reciprocal of x T in Hertz (1 / ΔT); |
| Auto Measurement | Frequency, Period, Mean, Pk-Pk, Cycle RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, delay 1 to 2 Rise, delay 1 to 2 Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Period Mean, Period RMS, FOVShoot, RPREShoot |
| Waveform Frequency | DC to 25 MHz |
| DAC Clock | 2 K to 200 MHz adjustable |
| Frequency resolution | 0.10 % |
| Channel Count | 1 CH waveform output |
| Waveform Depth | 4 KSa |
| Vertical Resolution | 12 bits |
| Frequency Stability | < 30 ppm |
| Waveform Range | ± 3.5 V Max. |
| Max Input Impedance | 10 MΩ |
| Output Impedance | 50 Ω |
| Output Current | 50 mA Ipeak = 50 mA |
| System BW | 25 M |
| Harmonic Distortion | -50 dBc (1 KHz), -40 dBc (10 KHz) |
| Frequency Range | DC to 60 MHz |
| Input Range | 400 mVpp to 18 Vpp |
| Weight | 2.8 lb (1.3 Kg) |
| Size | 9.6 in x 6.4 in x 2.04 in (245 mm x 163 mm x 52 mm) |
