Overview

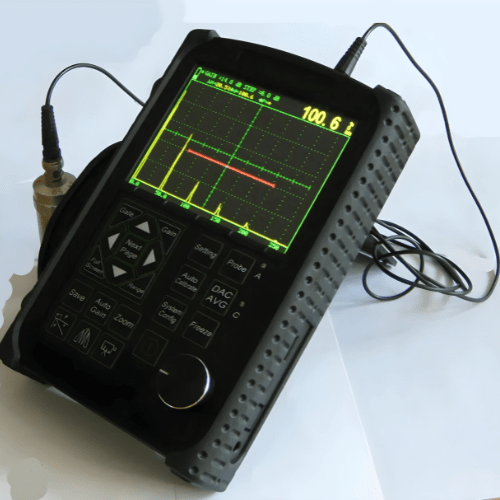

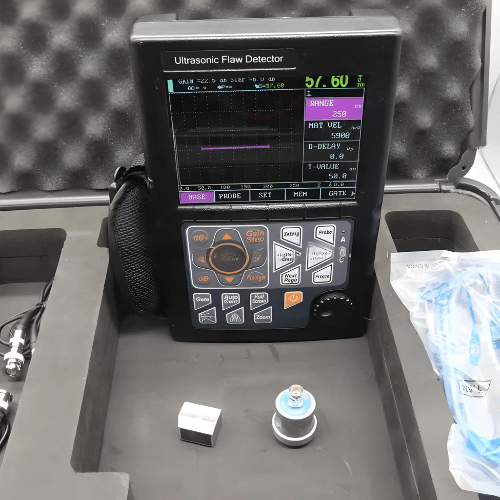

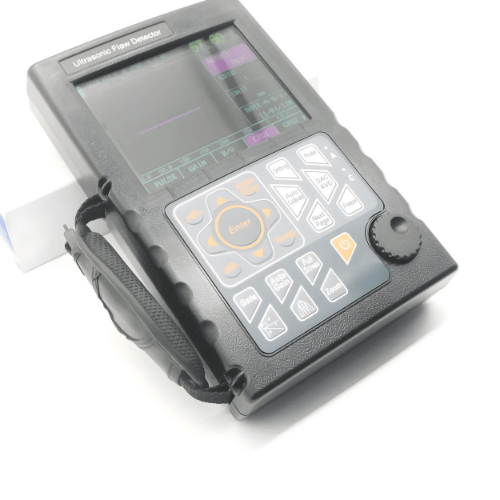

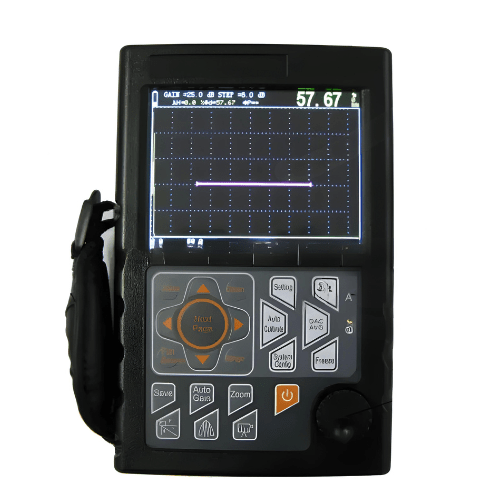

Emissions and Stack Auto Calibrated Ultrasonic Flaw Detector adopted the international advanced IC technique and new-style colour TFT LCD display. Its each performance index all arrives or even beyond international excellence. The instrument uses the artificial intelligence technology. It has very strong function and can be used very convenient. MFD500B can test, orient, evaluate and diagnose various flaws such as crack, lard, air hole in workpiece’s interior swiftly and accurately without any destruction. It can not only be used in lab but also can be used on engineering site. Also, it can be widely used for safety checking and life evaluating in fields of aeronautics, rail transportation and boiler pressure vessel.
Features
- Cutting-edge technology
- User-friendly operation
- Customize display colours to match surroundings
- LCD brightness adjustable for personalized settings
- High-security Lithium-ion battery for extended use
- Portable design
- One-hand operation
- Durable performance
Technical Specifications
| Range | 0 mm to 9999 mm |
| Pulse Repetition Rate | Manually adjustable from 10 Hz to 1000 Hz |
| Pulse Width | Adjustable in a certain range to match different probes |
| Damping | 100 Ω, 200 Ω, 400 Ω |
| Probe Work Mode | Single element, dual element and through transmission |
| Real-Time Sampling | 160 MHz high speed |
| Rectification | Positive half wave, negative halfwave, full wave, and RF |
| DB Step | 0 dB, 0.1 dB, 2 dB, 6 dB step value as well as auto-gain mode |
| Bandwidth | 0.5 MHz to 15 MHz |
| Material Velocity | 1000 m/s to 9999 m/s |
| Dynamic Range | ≥32 dB |
| Vertical Linear Error | ≤3 % |
| Horizontal Linear Error | ≤0.2 % |
| Resolution | >40 dB |
| Sensitivity Leavings | 60 dB |
| Rejection | 0% to 80% Linear |
| Noise Level | ≤10 % |
| Power Supply | DC 9 V |
| Relative Humidity | 20% to 95% RH |
| Ambient Temperature | -4 °F to 122 °F (-20 ℃ to 50 ℃) |
| Dimensions | 10.35 in x 6.69 in x 2.40 in (263 mm × 170 mm × 61 mm) |
