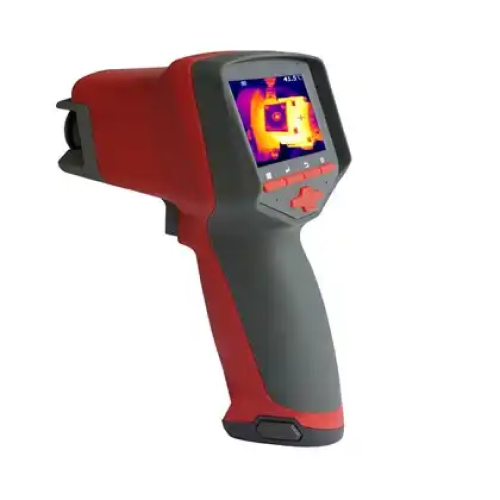

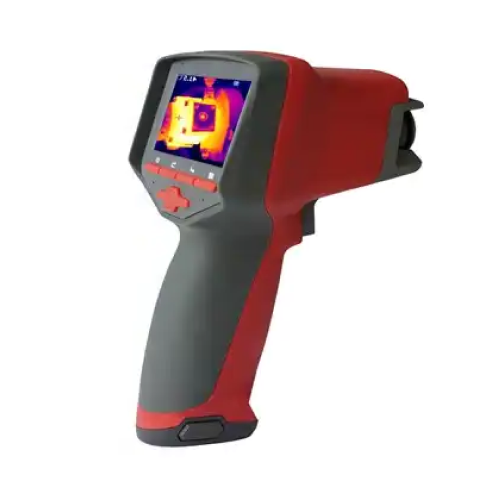

Name: Emissions and Stack Auto Focus Thermal Imager -
SKU: EMSTIIE-158

Features

State of the art 17 μm 640 x 480 microbolometers, superior image quality and thermal sensitivity (<40 mk)
Low power consumption, no TEC and Heater operation
With a 5-million pixels visible light camera, precise fusion with infrared images
With the DDE algorithm, clearer details, and 10 palettes
5 in (88.9 mm) touchscreen
Autofocus
Battery continuous working time of up to 6 hours
Offline analysis software

Technical Specifications

Spectral Band	7.5 μm to 14 μm
Resolution	640 pixels × 480 pixels
Pixel Size	17 μm
Maximum Frame Rate	50 Hz
Visible Light Camera	5 million pixels
Optical Filter/Window Correction	Auto Correction by User Transmission Input
Display mode	Full infrared, full visible, picture-in-picture, fusion (proportional adjustable), color warning
Temperature Measurement Mode	Real-Time Central Temperature Display, high and low-temperature tracking, User Defined Line/Probes of Interest
Automatic Alarming	User Defined Alarming Threshold
Frame Freeze	Supported
Image Enhancement	Detail Enhancement Technology
Palettes	10 Palettes: including Grayscale, Grayscale inverted, Iron bow, Hot metal, etc.
Digital Zoom	2 x, 4 x
TF card	32 GB TF card
Temperature data storage	Self-defined MGT format, dealing with offline software Thermoscope
Report Generation	Word format with user guide
Voice Annotation	60 s
Humidity	≤85 % (Noncondensing)
Enclosure rating	IP 54
Image And Video Export	USB interface or card reader
Laser Indication	Yes
External Power Supply	DC 12 V
Battery	Rechargeable lithium battery, working 6 hours
Dimension	5.83 in x 3.9 in x 9.72 in (14.8 cm × 9.9 cm × 24.7 cm)
Weight	1.322 lb (600 g)
Operating Temperature	-22 °F to 140 °F (-30 ℃ to 60 ℃)
Storage Temperature	-40 °F to 176 °F (-40 ℃ to 80 ℃)
