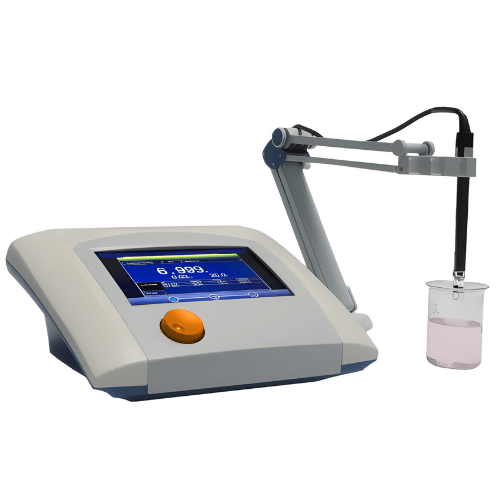

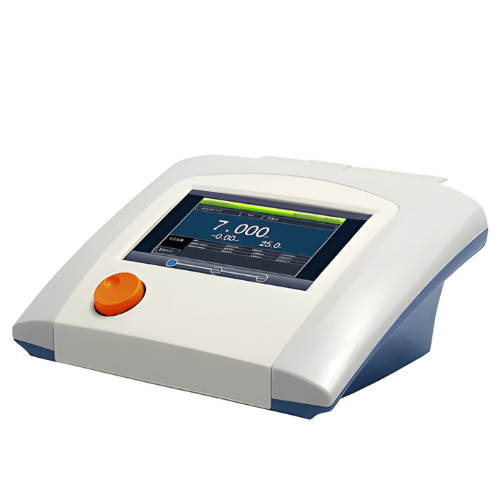

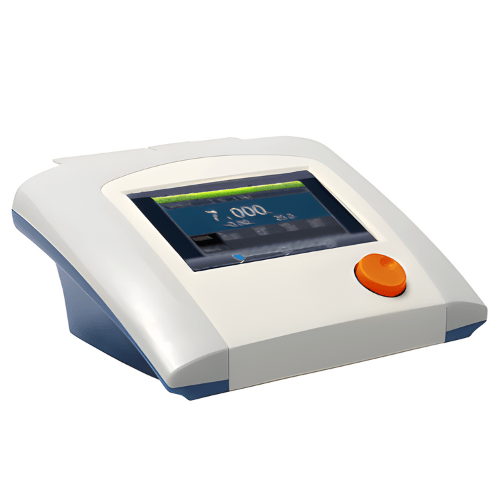

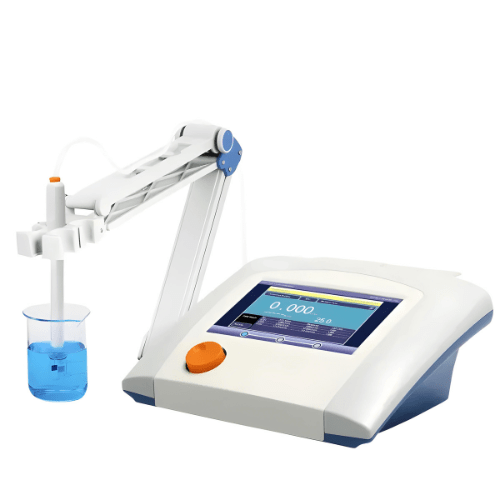

Name: Emissions And Stack Benchtop Laboratory Conductivity Meter TDS Meter -
SKU: EMSBCM-228

Features

0-inch LCD touchscreen, high contrast and colorful
Intelligent system manages users, calibration, methods, data, etc
Multi-reading offers auto, timed, and continuous readings
Accurate results ensured by auto/manual temp compensation
GLP-compliant, stores 1000 sets for each parameter
Analysis feature for reviewing, comparing, recalculating test results
USB/RS-232 support for communication convenience
Reset restores all settings to factory defaults automatically
Waterproof with IP54 rating for durability
Standard Recognition in 1-5 points calibration supported
Settable parameters: cell constant, reference temperature, compensation coefficient, TDS
Temperature compensation types: none, linear, pure water options

Technical Specifications

Conductivity
Range	0.000 μS/cm to 3000 mS/cm
Resolution	0.001 μS/cm minimum, various with range selection
Accuracy	±0.5% FS
Calibration Points	Up to 5
Standard Recognition	146.5 μS/cm, 1408 μS/cm, 12.85 mS/cm, 111.3 mS/cm
Resistivity
Range	5.00 Ω·cm to 100.00 MΩ·cm
Resolution	0.01 Ω·cm minimum
Accuracy	±0.5% FS
TDS
Range	0 mg/L to 1000 g/L
Resolution	0.001 ppm minimum, changed with range
Accuracy	±0.5% FS
Salinity
Type	NaCl%
Range	(0.00 to 8.00) %
Resolution	0.01%
Accuracy	±0.1%
Temperature
Resolution	33.44 °F (0.1 °C)
Accuracy	±33.44 °F (±0.1 °C)
Measurement
Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts	Reading, Stable, Locked
Temperature Compensation	ATC, MTC
Data Management
Data Storage	1000 Groups
GLP Features	Yes
Log Management	Yes
Inputs
Temperature Probe	6-pin Mini-DIN
Conductivity Probe	8-pin Mini-DIN
Outputs
USB, RS 232	USB 2.0 flash memory device, printer, PC
Display Options
Back Light	Yes
Auto Shutdown	1 min to 60 min, off
IP Rating	IP 54
Date And Time	Yes
Power	AC Adapter, 100 V to 240 V AC input, DC 24 V output
Reference Temperature	41 °F, 50 °F, 59 °F, 64.4 °F, 68 °F, and 77 °F (5 °C, 10 °C, 15 °C, 18 °C, 20 °C, 25 °C)
Temperature Range	23 °F to 266 °F (-5 °C to 130 °C)
Dimensions	11.02 in × 11.02 in × 5.11 in (280 mm × 280 mm × 130 mm)
Weight	5.51 lbs. (2.5 kg)
