Overview

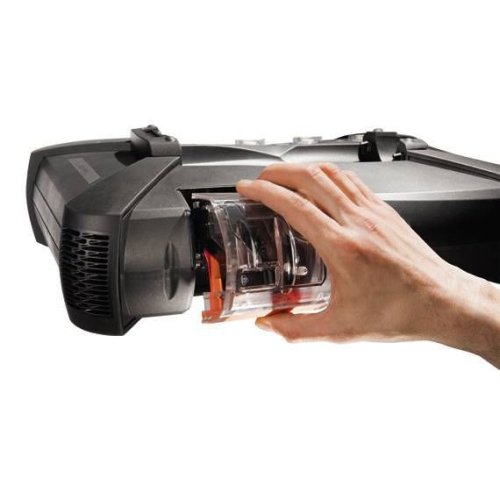

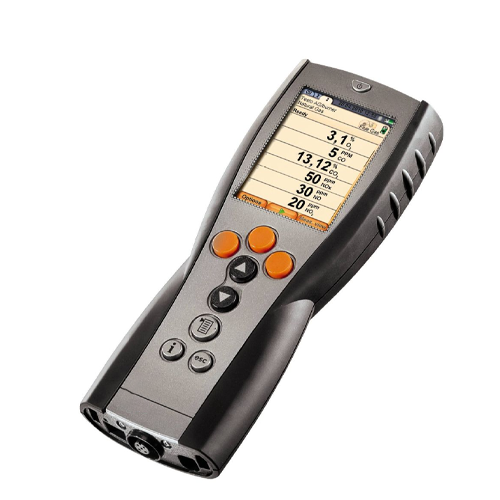

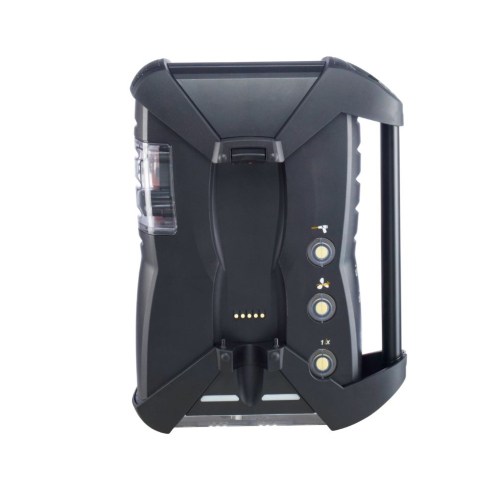

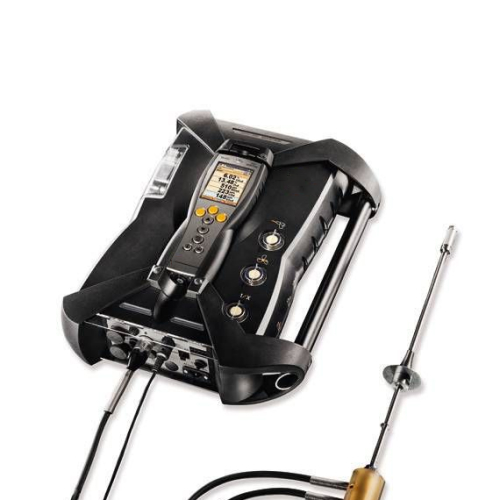

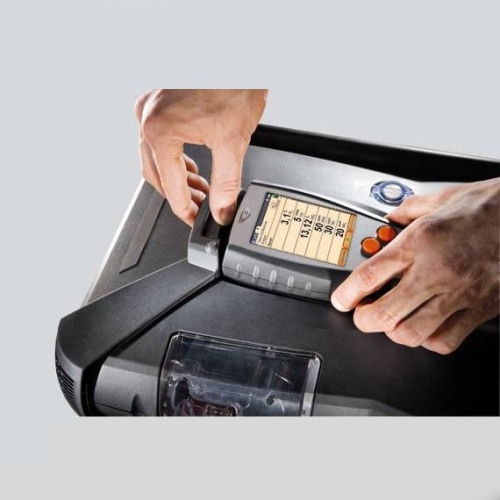

Emissions and Stack CO CO2 Nitrogen Dioxide Gas detector is ideal for professional flue gas analysis and industrial emissions measurement on industrial engines, burners, gas turbines and in thermal processes performs a variety of measuring and analysis tasks, impresses over the long term thanks to its heavy-duty industrial design and is also suitable for complex data acquisition. Increased measurement range for unlimited measurements even when gas concentrations are higher Easy-to-change gas sensors and easy access to wearing parts Sealed housing with built-in impact protection for use in harsh conditions Easy operation of the analyzer unit via Control Unit or easy Emission software (both products available separately) it is a rugged, easy-to-use exhaust gas analyzer designed to meet the highest demands when it comes to carrying out precise industrial emission measurements and providing proper data administration. The Analysis Box can be operated with up to 6 gas sensors, 5 of which are optional. This allows you to select freely from sensors for NO, NO2
Features
- Wide Operating Temperature Range
- Robust and Lightweight Design
- Compact Dimensions: 12.99 in x 5.04 in x 17.24 in (330 mm x 128 mm x 438 mm)
- Sturdy ABS Material in Sleek Black
- IP40 Protection Class
Technical Specifications
| Operating Temperature | 23 ℉ to 113 ℉ (-5 °C to 45 °C) |
| Housing Material | ABS |
| Product Color | Black |
| Protection Class | IP 40 |
| Connectable Probes | 1 x combustion air temperature probe, 1 x flue gas probe, 1 x temperature probe, 1 x differential pressure |
| Battery Type | Lithium batteries |
| Battery Life | 5 h |
| Power Supply | AC mains unit 100 V to 240 V (50 Hz to 60 Hz) |
| DC Electric Tension Input | 11 V to 40 V |
| Pump Flow | 1 l/min. with through-flow monitoring |
| Hose Length | 637 in (16200 mm) (corresponds to 5 probe hose extensions) (16200 mm) (corresponds to 5 probe hose extensions) |
| Max. Positive Pressure/Flue Gas | 0.725 PSI (5 kPa) |
| Max. Negative Pressure/Flue Gas | -4,351 PSI (-30 kPa) |
| Max. Dust Load | 20 g/m³ dust in flue gas |
| Trigger Input | Voltage 5 to 12 (rising or trailing edge) pulse width > 1 secload: 5 V/max, 5 mA, 12 V/max. 40 mA |
| Maximum Readings | 250,000 readings |
| Interface | Data bus, Bluetooth®, USB, IR/IRDA interface, Mains connection, trigger input, Differential Pressure, probe input/ probe inputs, DC-voltage input, dilution gas inlet for measurement range extension |
| Storage Temperature | -4.0 °F to 122.0 °F (-20 °C to +50 °C) |
| Flue Gas CO Low (with H₂-compensation) | Measuring Range: 0 ppm to 500 ppm |
| Accuracy | ±5 % of mv (+40 ppm to +500 ppm), ±2 ppm (0 ppm to +39.9 ppm) |
| Resolution | 0.1 ppm (0 to +500 ppm) |
| Reaction Time | T90: 40 s |
| Product Size | 13 in x 5.04 in x 17.24 in (330 mm x 128 mm x 438 mm) |
| Product Weight | 10.58 lb (4.8 Kg) |
