Name: Emissions and Stack Colorimeter Five Colour Scales -
SKU: EMSCDC-208

Technical Specifications

Beam Height	10
Colour Scales	DIN 6162 iodine ISO 6271 Hazen (Pt or Co, APHA, ASTM D 1209, D 5386) ISO 4630 Gardner (ASTM D 1544, D 6045) ASTM D 156 Say bolt ASTM D 1500 mineral oil
Colour Scales	5
Cuvette Compatibility 2	0.39 in (10 mm) rectangular sample cell
Cuvette Compatibility 3	1.97 in (50 mm) rectangular sample cell
Display	TFT WVGA colour graphic touchscreen
Display Resolution	480 to 800 pixels
Display Size	7 in (17.8 cm)
Display Type	Colour graphic
Interface	2 x USB type A, 1 x USB type B, 1 x Ethernet
Max. operating humidity	80
Memory	400 colour readings

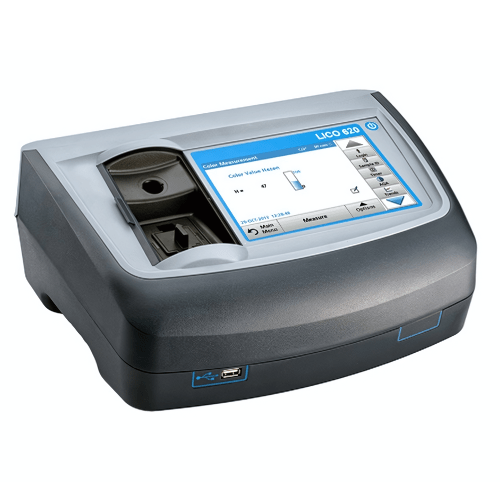

Model	Lico 620
Optical Path Length	0.39 in to 1.97 in (10 mm to 50 mm)
Optical System	0° or 180° rectilinear
Photometric Accuracy	0.005 Abs at 0 Abs to 0.5 Abs
Photometric Accuracy 2	1% at 0.5 to 2.0 Abs
Photometric Linearity	<0.5% to 2 Abs with neutral glass at 546 nm
Photometric Linearity 2	≤1% with neutral glass at 546 nm
Power Requirements	110 V to 240 V
Power Requirements (Hz)	50 Hz or 60 Hz
Power Requirements (Voltage)	100 V AC to 240 V AC
Reproducibility	±0.2% transmission
Sample Cell Compatibility	0.43 in (11 mm) round sample cell
Source Lamp	Tungsten halogen lamp
Standard IL luminant	C 2°
Standard Observer	2°
Stray radiant power ratio	<0.1% T at 340 nm with Na NO 2
User Interface	Touchscreen, ext. USB keyboard
Wavelength Accuracy	±1.5 nm (wavelength range 340 nm to 900 nm)
Wavelength Calibration	Automatic
Wavelength Range	380 nm to 720 nm used for colorimetric calculations
Wavelength Reproducibility	≤0.1
What’s included?	Instrument, power supply, printed basic user manual, CD with full user manual, 10 mm cell adapter, dust cover
Operating Temperature Range	50 °F to 104 °F (10 °C to 40 °C)
Storage Conditions	-40 °F to 140 °F (-40 °C – 60 °C)
Dimensions	5.94 in x 13.78 in x 10.04 in (151 mm x 350 mm x 255 mm)
Weight	9.26 lb (4.2 kg)
