Overview

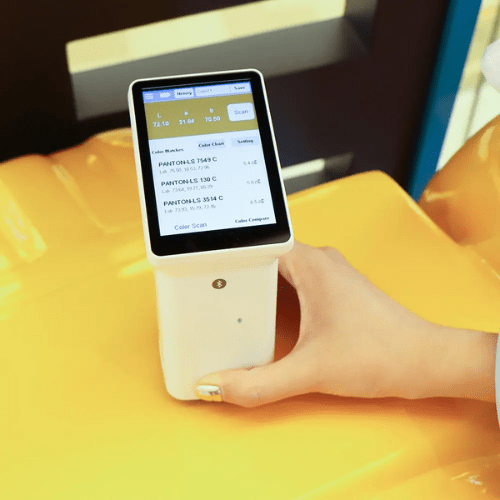

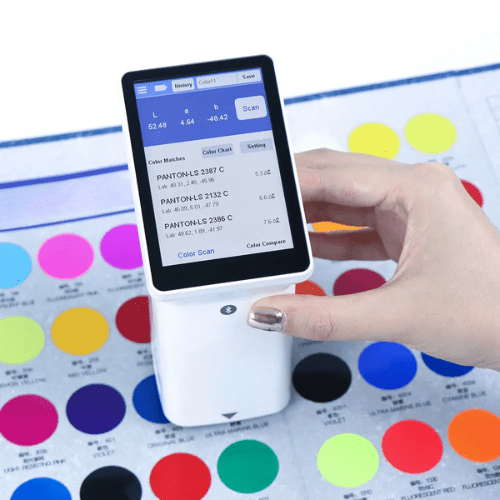

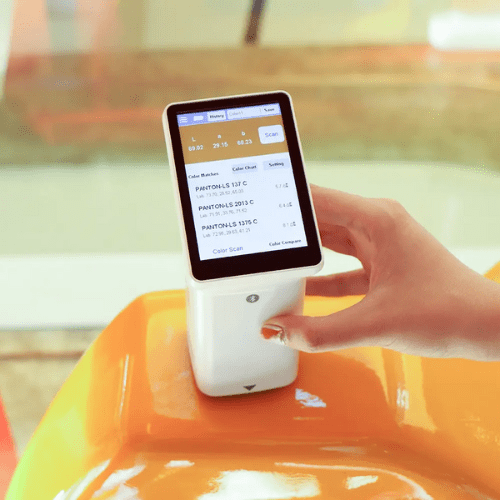

Emissions and Stack culinary colour measurement colorimeter is equipped with 8.89 cm (3.5-inch) IPS color capacitive touch screen. This product adopts D or 8° illumination design, which is usually used in automotive paint, hardware processing, stone, decoration materials, plastic industries, etc. The instrument is built-in multiple electronic color cards, which can quickly match the measured color with three closest color card numbers. It has QC function with customizable color difference threshold for batch inspection. It comes with the mobile APP and PC software that supports color sharing. It has CE certificate, which guarantees products quality.
Features
- 89 cm (3.5-inch) IPS color touch screen for convenience
- D or 8° illumination design for general industries
- Built-in electronic color cards for rapid matching
- QC function with customizable color difference threshold
- Support for mobile APP and PC software
- CE certificate ensures product quality
- Stable value, repeatability △E x ab ≤ 0.03
- Large storage for extensive color data
Technical Specifications
| Illumination Geometry | D or 8, specular component includes (SCI) |
| Illumination Light Source | Full spectrum LED light source |
| Measuring Aperture | 0.31 in (8 mm) |
| Measurement Conditions | Light source D65, field of view 10° |
| Measuring Time | About 1 s |
| Color Space | CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex |
| Color Difference Formula | ΔE x ab, ΔE x uv, ΔE x 94, ΔE x cmc(2:1), ΔE x cmc(1:1), ΔE x 00 |
| Repeatability | Standard deviation ΔE x ab ≤ 0.03 (Measurement condition the average value of 30 measurements on the whiteboard at an interval of 3 s after calibration) |
| Power Supply | Rechargeable lithium battery 3.7 V at 4000 mAh,can measure 10,000 times continuously under full charge |
| Display | 480 × 320 dot matrix IPS color screen |
| Charging Port | USB (Type-C) |
| Operating Temperature Range | 32 ℉ to 113 ℉ (0 ℃ to 45 ℃), 0% to 85% RH (no condensation) |
| Storage Temperature Range | 13 ℉ to 131 ℉ (- 25 ℃ to 55 ℃), 0% to 85% RH (no condensation) |
| Dimension | 3.38 in x 2.46 in 6.22 in (86 mm × 62.5 mm × 158 mm) |
| Weight | About 8.64 oz (245 g) |
