Overview

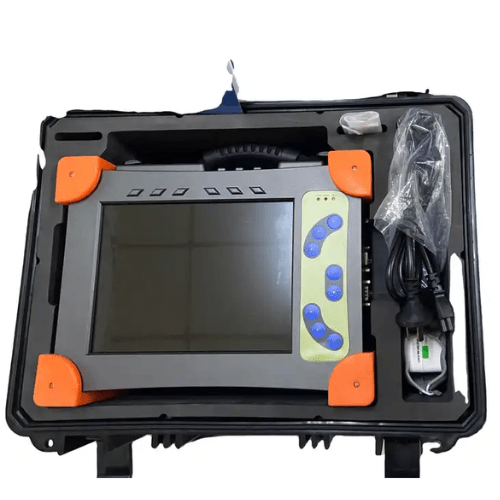

GAO Tek current flaw detector is an instrument that has integrated four functions conventional eddy current, magnetic memory (optional), thickness gauge (optional), electrical conductivity measurement (optional), and hardness sort (optional). Users are able to choose the appropriate functions based on different needs, so it can effectively reduce the cost of detection; at the same time the instrument is equipped with powerful dual-core processors, embedded operating system, It uses the most advanced digital electronic technology ,magnetic memory testing techniques and microprocessor technology , it is able to detect the metal defects in metallic material and know the types of alloy and heat treatment conditions, the thickness change and so on .
Features
- Simple operation, real-time screen prompt and man-machine dialogue
- Digital filtering
- Alarm window
- Background selection of rectangular coordinate system and polar coordinate system
- Automatic calendar and time display
Technical specification
| Screen | Large 10.4 in color LCD |
| Frequency | Dual frequency (10 Hz to 10 MHz) |
| Gain | Hardware (0 dB to 40 dB), software (0 dB to 99 dB) |
| Phase | 0 degrees to 359 degrees |
| Display mode | Impedance, time base, point, line. |
| Storage | 30GB for data and graphics. |
| Filtering | High pass, low pass, coefficient 0-4000. |
| Measurement | Automatic/manual amplitude and phase. |
| Alarms | Fan, rectangle, circle. |
| Coordinates | Rectangular or polar. |
| Power | 10 W |
| Battery | 8+ hrs. |

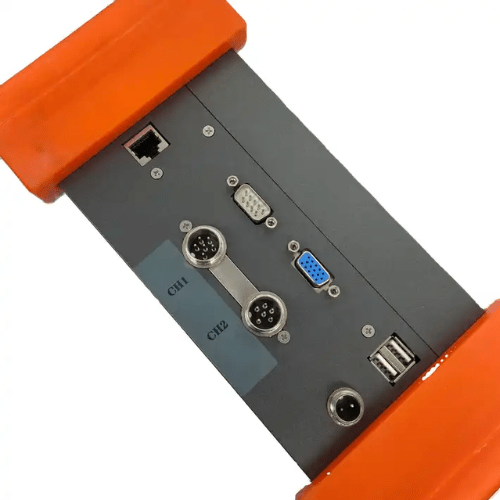

| Connectivity | 2 USB, 1 RS-231, VGA output. |
| Inputs/ Outputs | 8 alarms, 8 starts, 1 encoder. |
| Channels | 1 to 4 testing, 1 to 16 probe drives. |
| Detection | Full wave, positive/negative half wave, RF wave. |
| Operating conditions | 50 °F to 122 °F (10 °C to 50 °C), ≤80% humidity. |
| Size | 13 in x 10 in x 4.1 in (320 mm x 235 mm x 103 mm) |
| Weight | 6.6 lbs. (3 kg) with battery. |
