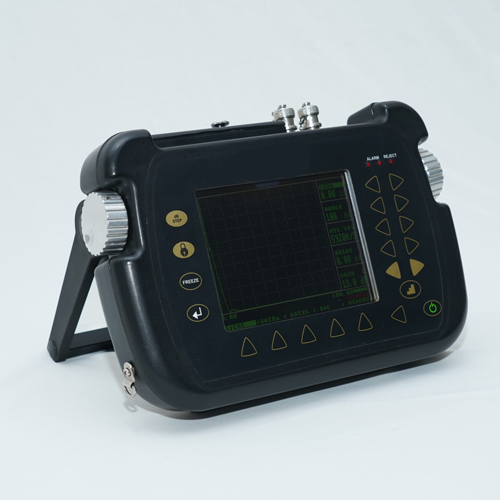

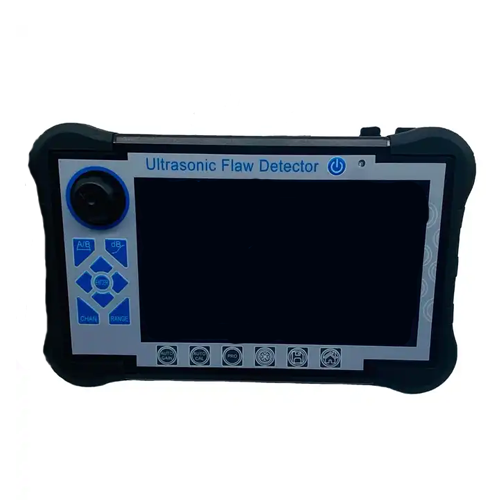

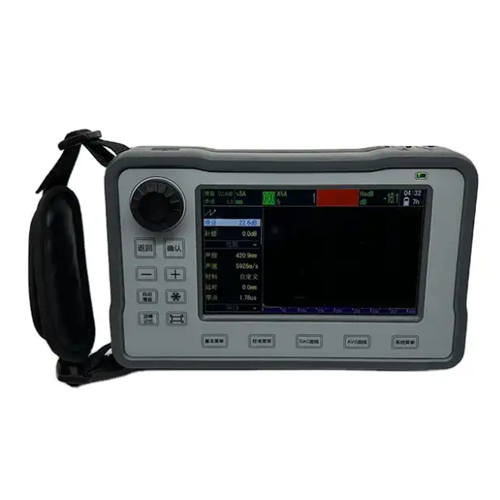

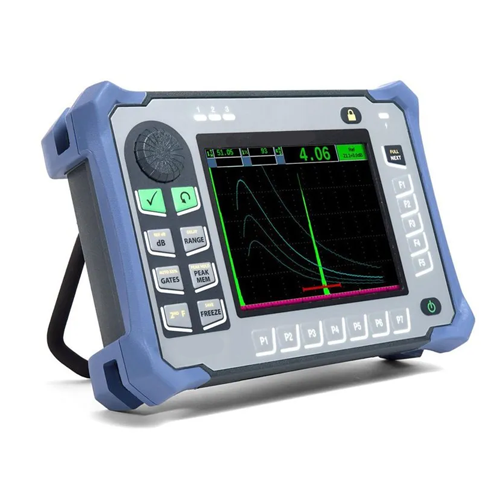

Overview
Emissions and Stack curve detector testing machine is applicable and not limited to the detection positioning, evaluation, and diagnosis of various internal defects such as cracks, looseness, pores and inclusions in the workpiece.
Feature
- Supports full screen touch, fast gesture operation and virtual keyboard
- PD 65 W fast charging + 12 hours of ultra long battery
- Equipped with professional functions such as DAC, AVG, colour half span, B scan etc
- Many practical functions such as switching between Chinese and English
- Exporting data to SD cards and online upgrades
Technical Specifications
| Detection Range | 33 ft (10 m) (Longitudinal wave carbon steel)(Metrological performance requirements >138 in (> 350 cm) |
| Pulse voltage | 100 V to 300 V |
| Damping | Strong and weak adjustable |
| Resolution | 800 x 480 |
| Gain | 120 dB, pace 0.1 dB, 1 dB, 10 dB |
| Measurement mode | Peak, wave side |
| Quantitative mode | DAV curve, AVG (DGS) curve |
| Unit | Metric, Imperial |
| Bandwidth | 0.1 MHz to 20 MHz |
| Battery | Battery |
| Size | 7.2 in x 4.5 in x 1.8 in (183 mm x 113 mm x 45 mm) |
| Operating temperature | 14 °F to 131 °F (-10 °C to 55 °C) |
| Weight | 1.49 lb (680 g) |
