Overview

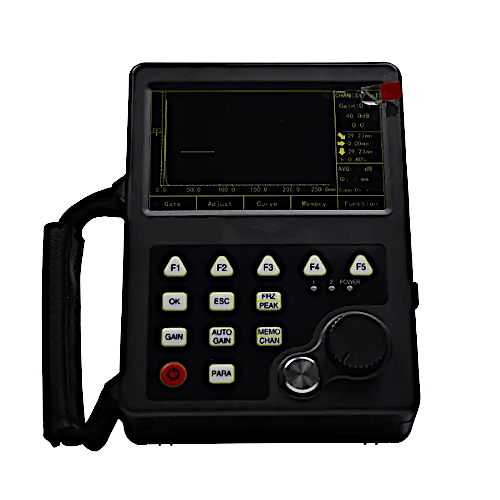

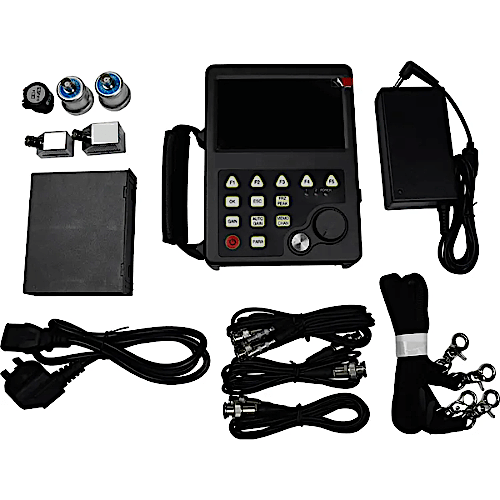

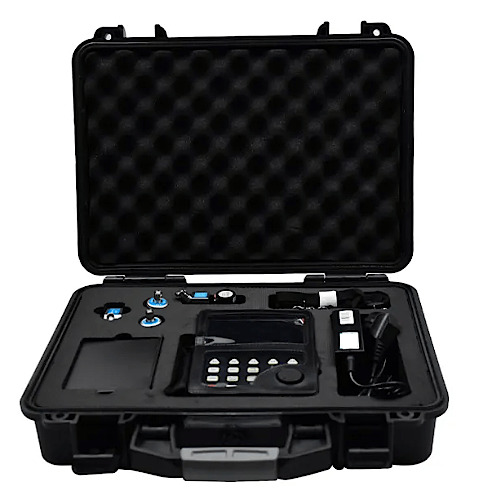

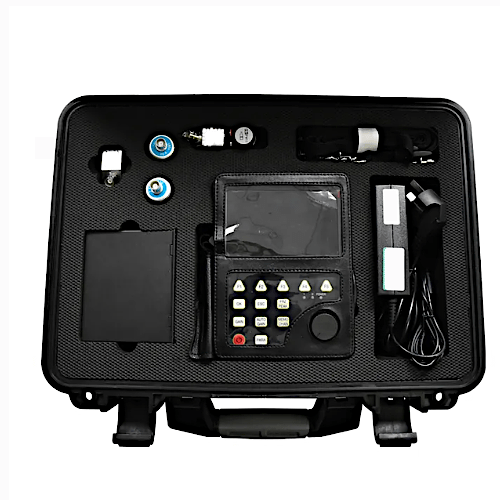

Emissions and Stack detection ultrasonic flaw detector can quickly, non-destructively and accurately detect various defects (cracks, inclusions, blowhole etc.) inside the workpiece. The product is unique in design, easy to operate and durable. Different color schemes can be selected according to the environment. The brightness of liquid crystal can be adjusted under strong outdoor light. Master-slave menu design, with digital shuttle wheel, easy to operate, leading technology. It is widely used in aerospace, railway transportation, building steel structure, boiler pressure vessel and other fields.
Features
- Integral design, compact size
- Audible Alarm
- Designed for thin workpiece
- Real time A-scan with adjustable gain
- Though coating measurement
- Easy to carry and make work efficient
- Measurement data can be calibrated manually
Technical Specification
| Working principle | Ultrasound(pulse) |
| Working frequency range | 0.5 MHz to 20MHz |
| Pulse Width | Square wave width 30 ns to 1000 ns |
| Pules displacement | 9.87 in to 0.99 in (45 mm to 1000 mm) |
| Material sound velocity | 300 m/s to 5000 m/s |
| Detection method | Negative wave, forward wave, two-way wave, filtering |
| Gain adjustment | 0 dB to 110 dB |
| DAC, AVG function | DAC curve, AVG curve |
| Vertical linear error | ≤3 % |
| Horizontal linear error | ≤0.5 % |
| Dynamic Range | ≥30 dB |
| Flaw detection margin | ≥65 dB |
| Far-field resolution | ≥26 dB |
| Electrical noise level | ≤10 % |
| Operating Voltage | 12 V |
| Physical dimension | 8.98 in x 6.98 in x 4.77 in (180 mm 130 mm x 40 mm) |
