Overview

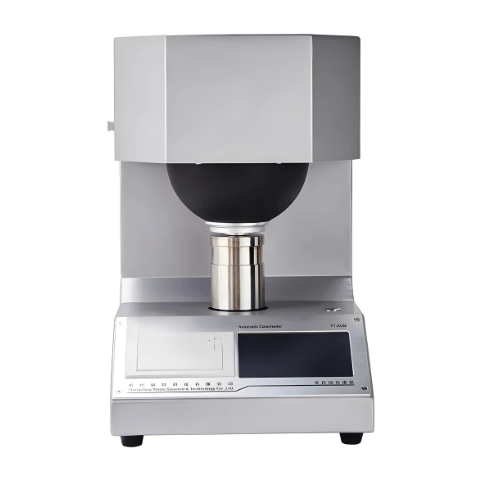

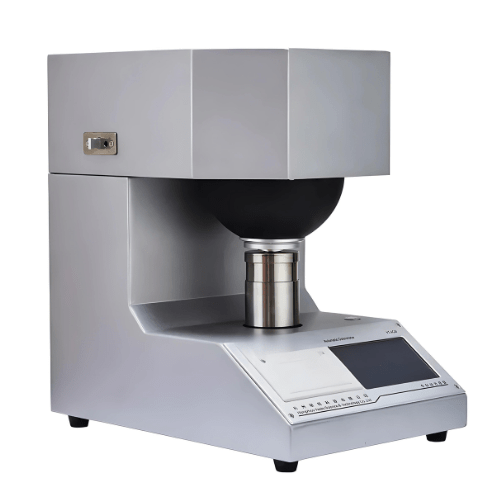

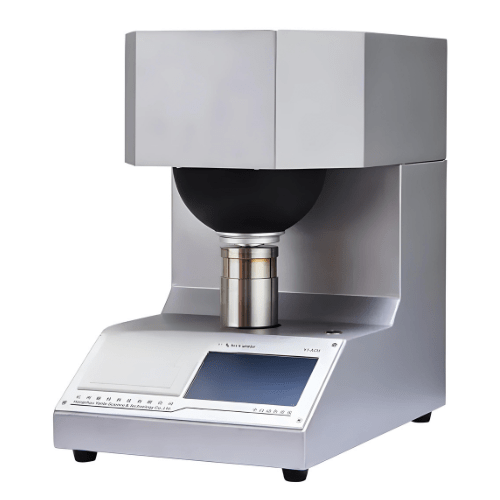

Emissions and Stack digital brightness color meter is a detection instrument for measuring the color, chromatic aberration and whiteness of objects based on the principle of light reflection.
Features
- Advanced mechatronics design
- Truly realize one-key testing of whiteness and Chroma
- ARM processor improves the response speed of the instrument
- Calculates data more accurately and quickly.
- The reference sample can be in kind or data
- The instrument can store and memorize up to ten references
- Can store 10 reference samples and have power-off protection
- Calibration data will not be lost after power-off
- Standard RS232 interface
- With computer software for communication (Purchased separately)
Technical Specifications
| Power Supply | AC (100 V to 240 V), (50 Hz or 60 Hz), 50 W |
| Light source | Analog D65 |
| Integrating sphere | Diameter 5.9 in (150 mm) |
| Sample Size | Test plate diameter ≥ 1.18 in (φ 30 mm) while sample thickness ≤ 1.5 in (40 mm) |
| Indication Accuracy | Chromaticity Coordinate 0.0001, others 0.01 |
| Zero Drift | ≤ 0.1 |
| Indicating Drift | ≤ 0.5 |
| Repetitive Accuracy | ≤ 0.02 (10 consecutive tests at intervals of 10 seconds) |
| Specular Reflectance Accuracy | ≤ 0.1 |
| Built-in thermal printer | |
| Display | 480 x 272 dot matrix 5 in (12.7 cm) color touch screen |
| Working Environment | Temperature -12.22 ℉ to 1.66 ℉ (10 ℃ to 35 ℃), Humidity ≤ 85 % |
| Dimension | 15.1 in x 11 in x 16.1 in (385 mm × 280 mm × 410 mm) |
| Net Weight | 27.5 lb (12.5 kg) |
