Overview

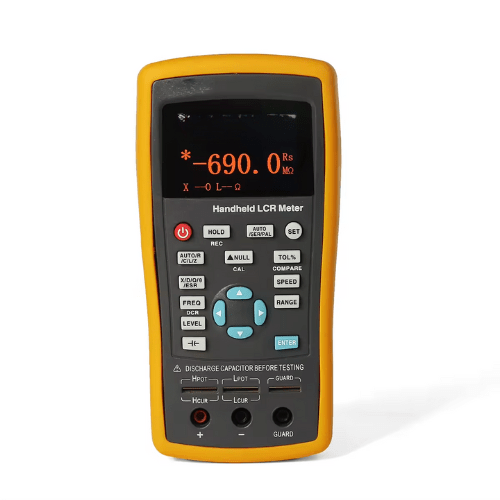

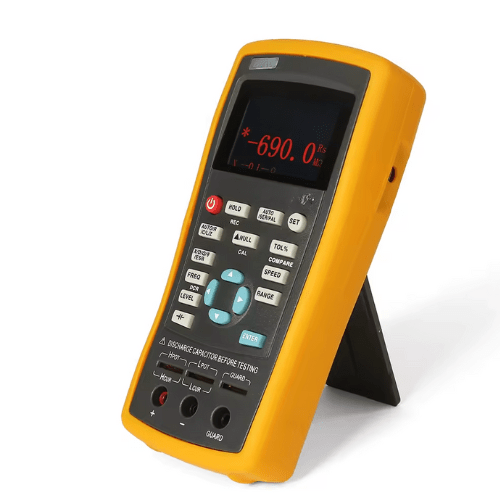

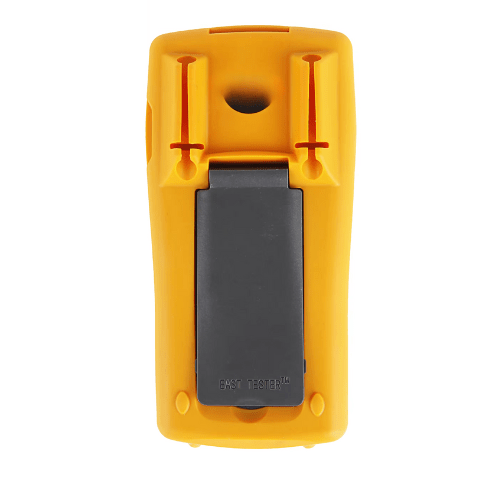

Emissions And Stack digital LCR capacitance meter features 2.8 in TFT display screen, easy key operation and USB communication. Its high capacity lithium battery ensures a long run. It can measure comprehensive parameters, and supports screening and deviation measurement, with continuously adjustable output frequency. The basic accuracy reaches 0.2%/0.3%.
Features
- Measurable frequency up to 100k Hz, continuously adjustable at a step of 1 Hz.
- Measurement of DC resistance and electrolytic capacitor supported
- Internal bias voltage output (0 mV to 500 mV)
- Automatic identification of measured component
- Support for screening and deviation measurement
- 8 in TFT display screen, a 4 1/2 digit display
- USB communication interface
- Basic measuring accuracy 0.2 %, adjustable measuring speed
- Manual and automatic range
- Open circuit and short circuit calibration
- Multiple testing ports
Technical Specifications
| Testing Frequency | 100 Hz to 100 KHz Continuously adjustable,a step of 1 Hz |
| Basic Accuracy | 0.2 % |
| Display Screen | 2.8 in TFT LCD screen |
| Number Of Display Digits | Principal parameter: 5 digit Secondary parameter: 5 digit |
| Measured Parameter | Principal parameter: L/C/R/Z Secondary parameter: X/D/Q/θ/ESR |
| Electrolytic Capacitor Mode | Yes |
| DCR Mode | Yes |
| Measurement Range | L：0.000 µH to 2000 H， C：0.000 pF to 20.000 mF， R：0.0001 Ω to20.000M Ω |
| Measuring Display Speed | 1 time/s (slow), 2 times/s (medium), 4 time/s (fast) |
| Internal Bias | 0-500mV adjustable, at a step of 1mV. |
| Testing Level | 10mV to 1100 mV adjustable |
| Calibration Function | Open circuit calibration, short circuit calibration |
| Screening Function | The limit range of screening can be set to 1%-50%, and the fixed points are 1%, 5%, 10% and 20% |
| Deviation Measurement | Used for comparing and displaying deviation percentage of component and the set nominal value |
| Others | Adjustment of backlight brightness, Chinese and English are optional,USB device and automatic power-off time |
| Standard Configuration | Mini-USB cable Power adapter Short circuit bar Red and black rubber plug High capacity lithium battery Kelvin clips |
| Optional Configuration | SMD clips |
