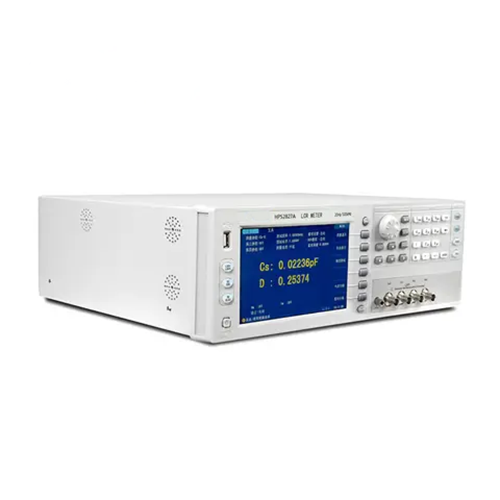

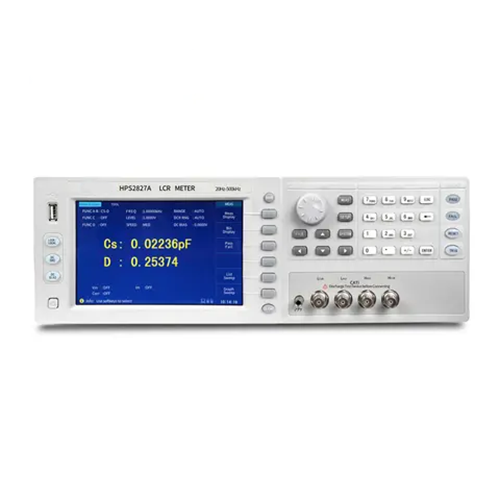

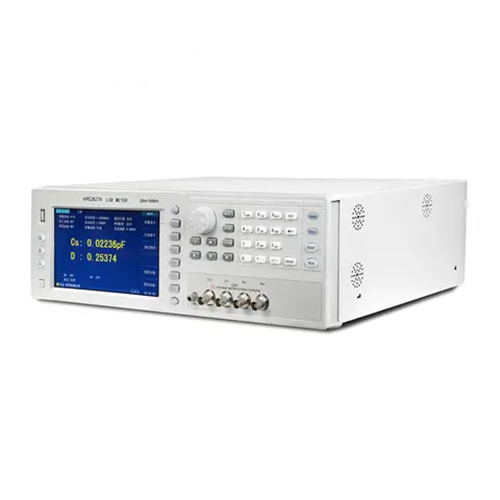

| Monitor |
Large LCD display |
| Display Digits |
6-digit Reading resolution |
| Measurement Parameter |
Z, Cs, Cp, Rs (ESR), Rp, Ls, Lp, θ(Deg), θ(Rad), X, G, Y, B, D (tan δ), Q, DCR |
| Basic Accuracy |
0.1 % |
| Measuring Speed |
Fast: 180 times / sec, medium speed: 25 times / sec, slow speed: 5 times /sec |
| Equivalent Circuit |
Series Parallel |
| Range Mode |
Automatic, keep |
| Display Method |
Direct reading, absolute deviation ΔABS and relative deviation Δ % |
| Trigger Mode |
Internal, manual, external, bus |
| Correction Function |
Open/short sweep clear, load calibration |
| List Scan |
20-point frequency, level, bias voltage / current |
| Graph Scan |
Frequency, level, bias voltage / current |
| Test Frequency |
20 Hz to 500 kHz, 10 MHz Stepping |
| Test Level |
0.01 Vrms to 2.0 Vrms, 10 mV Stepping |
| Output Impedance |
10 Ω, 30 Ω, 50 Ω, 100 Ω |
| BDC Bias |
Built in 0 to ± 5 V;0 to ± 50 mA |
| Operating Environment |
32 °F to -40 °F (0 °C to -40 °C) Humidity: ≤ 90 % RH |
| Guaranteed Accuracy Environment |
73.4 °F to 41°F (23 °C to ± 5°C) Humidity: ≤ 80 % RH |

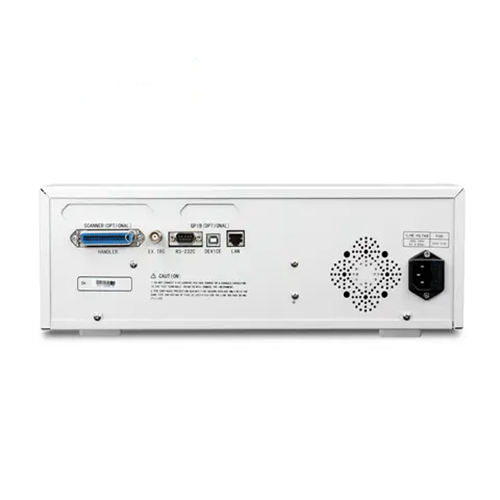

| Power Requirement |
198 V to 242 V (AC), 47.5 Hz to 63 Hz |
| Power Consumption |
≤ 60 VA |
| Size |
13.77 in x 4.72 in x 15.74 in (350 mm x 120 mm x 400 mm) |
| Weight |
14.33 lb (6.5 kg) |
