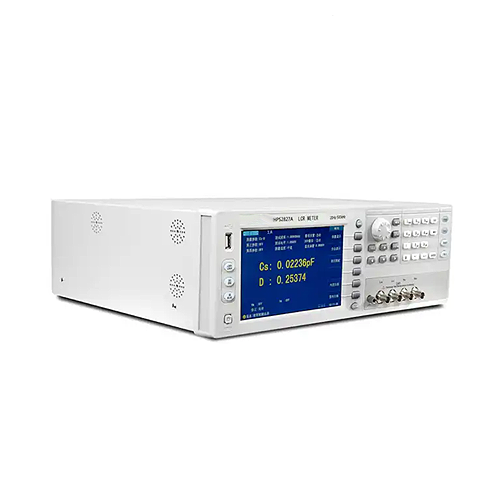

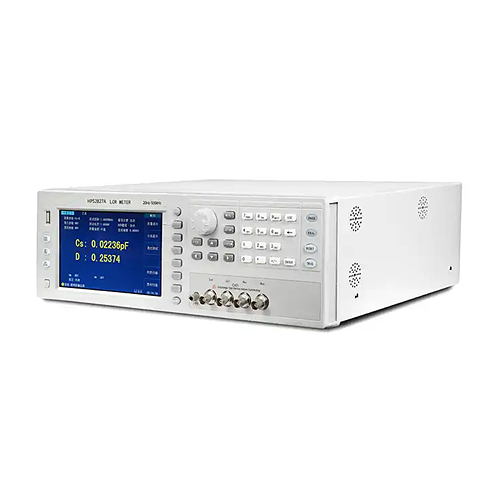

| Display Digits |
6-digit reading resolution |
| Measurement Parameter |
Z, Cs, Cp, Rs (ESR), Rp, Ls, Lp, θ (Deg), θ (Rad), X, G, Y, B, D (tanδ), Q, DCR |
| Basic Accuracy |
0.1% |
| Measuring Speed |
Fast: 180 times/sec, medium speed: 25 times/sec, slow speed: 5 times/sec |
| Equivalent Circuit |
Series Parallel |
| Range Mode |
Automatic, keep |
| Display Method |
Direct reading, absolute deviation ΔABS and relative deviation Δ% |
| Trigger Mode |
Internal, manual, external, bus |
| Correction Function |
Open or short sweep clear, load calibration |
| List Scan |
20-point frequency, level, bias voltage or current |
| Graph Scan |
Frequency, level, bias voltage or current |
| Test Level |
0.01 Vrms to 2.0 Vrms, 10 mV Stepping |
| Output Impedance |
10 Ω, 30 Ω, 50 Ω, 100 Ω |
| BDC Bias |
Built-in: 0 V to 5 V; 0 mA to 50 mA |
| Z, Rs, Rp, X |
0.0001 Ω to 99.99 MΩ |
| Y, G, B |
0.0001 µS to 999.99 S |
| Cs, Cp |
0.00001 pF to 99.99 mF |
| Ls, Lp |
0.00001 µH to 99.99 kH |
| Θ (Deg) |
-179.99° to 179.99° |
| Θ (Rad) |
-3.14 to 3.14 |
| D (Tanδ) |
0.00001 to 9.99 |
| Q |
0.00001 to 99999.9 |
| Δ% |
-999.99% to 999.99% |
| DCR |
0.001 Ω to 99.999 MΩ |
| Sorting Function |
10 files sorted (9 files qualified and 1 file failed), and 1 auxiliary file |

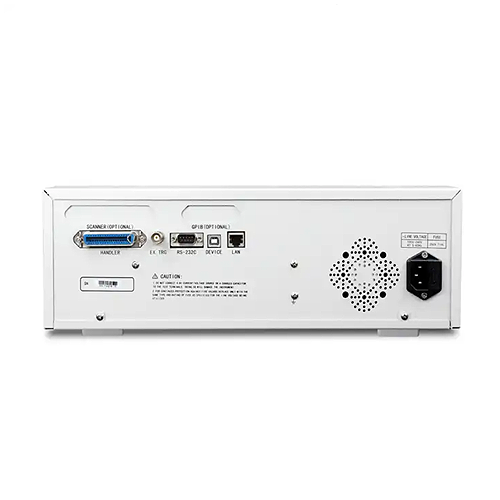

| Interface Configuration |
RS-232C interface or HANDLER or USB HOST or GPIB (optional) or USB Device (optional) |
| Operating Environment |
32 °F to 104 °F (0 °C to 40 °C), less than 90% RH |
| Power Requirement |
198 V to 242 V (AC), 47.5 Hz to 63 Hz |
| Power Consumption |
Less than 60 VA |
| Size (W X H X D) |
13.78 in x 4.72 in x 15.75 in (350 mm x 120 mm x 400 mm) |
| Weight |
14.33 lb (6.5 kg) |
