| Test Parameter |
L to Q, C to D, R to Q, |Z| to Q |
| Basic Accuracy |
0.1% |
| Equivalents Circuit |
Series, parallel |
| Mathematical Functions |
Deviation and Percent Deviation |
| Rang Mode |
Auto, Hold |
| Trigger Mode |
Internal, Manual and External |
| Measurement Speed Fast |
12, Med: 5.1, Slow: 2.5 (meas/sec) |
| Measurement Terminals |
Five Terminals |
| Test Frequency |
100 Hz, 120 Hz, 1 kHz, 10 kHz, Accuracy 0.01% |
| Output Impedance |
30 Ω, 100 Ω |
| Signal Level |
0.1 Vrms, 0.3 Vrms, 1 Vrms |
| Display Mode |
Direct, Δ%, Δ ABS |
| Display |
Large character LCD with backlight |
| Display Digits |
Primary and secondary display: 5 digits |
| Comparator |
NG, P1, P2, P3, AUX, 5 bins and alarm selectable |

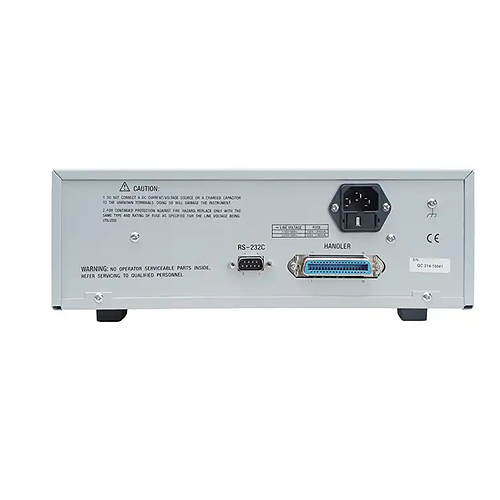

| Interface |
RS232C, Handler |
| Operation Temperature and Humidity |
32 °F to 104 °F (0 °C to 40 °C), less than 90% RH |
| Power Requirements Voltage |
99 V to 121 V, 198 V to 242 V |
| Frequency |
47.5 Hz to 63 Hz |
| Power Consumption |
Less than 20 VA |
| Dimensions (W×H×D) |
10.63 in x 5.12 in x 11.81 in (270 mm x 130 mm x 300 mm) |
| Weight Approx |
8.16 lb (3.7 kg) |
