Overview

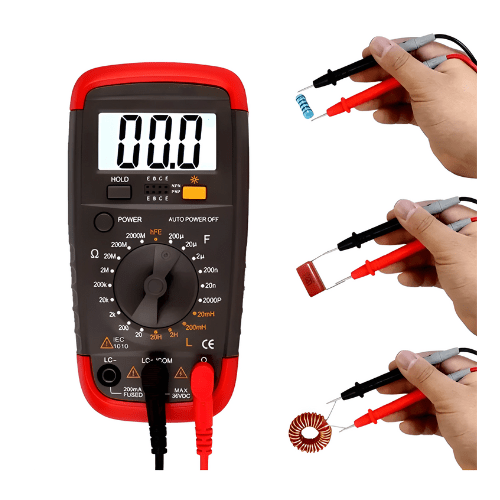

Emissions And Stack digital LCR multimeter is a kind of stable performance, safe and reliable, high precision of handheld 3 1 or 2 a manual switch range digital instrument. Can be used to measure the capacitance, resistance, triode magnification beta and other functions. Apply to electronic experiment, production lines, resistance of the pits and teaching, or inductance test, it is an ideal repair tool for users.
Technical Specifications
| Measuring Resistance Range | 20 Ω or 2000 Ω or 20 KΩ or 200 KΩ or 20 MΩ or 200 MΩ Accuracy ± (1.0 % + 20) |
| Measuring Capacitance Range | 2000 PF to 200 uF Accuracy ± (2.5 % + 20) |
| Measuring Inductance Range | 20 mH to 20 H Accuracy ± (2.5 % + 25) |
| Maximum display | 1999 |
| Range choice | Manual range |
| Power | 9 V (6F22) x 1 |
| Size | 5.62 in x 2.91 in x 1.37 in (143 mm x 74 mm x 35 mm) |
| Weight | 0.38 lb (176 g) |
