Features
- A logic Analyzer examines of a digital system, collecting & storing data

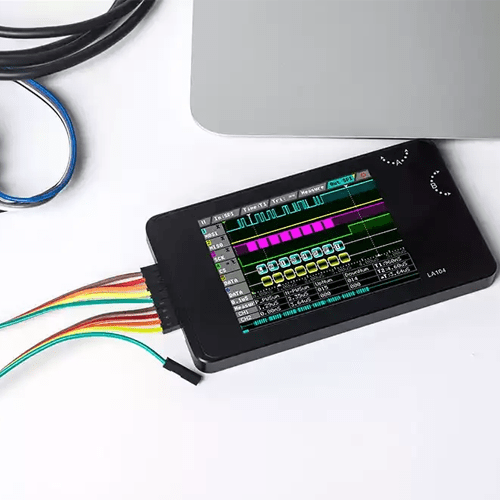

- Visualize timing relationships of multi-channel digital signals on the screen
- It parses logic signals into high-level protocol data for display it
- 8 in (7.1 cm) TFT LCD screen makes reading data faster and easier

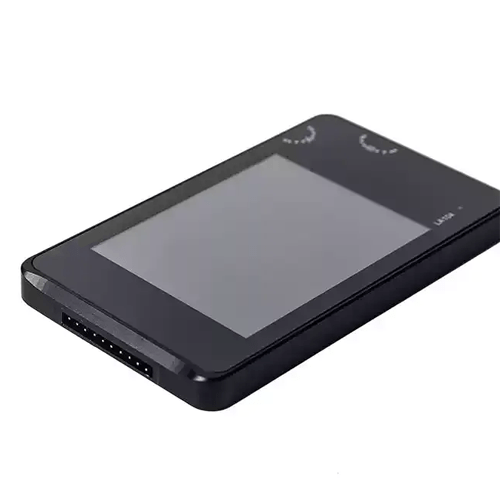

- Small and portable, easy to use and carry
- Used in automotive electronics, communications, power, computers
Technical Specifications
| Input or Output Channels | 4 Ch |
| Max. sampling rate | 100 MHz |
| Minimum capture pulse width | 10 ns |
| Input impedance | 1 MΩ |
| 3 V output channel | 1 |
| Storage | 8 MB USB flash disk memory |
| Screen size | 2.8 in (7.1 cm) |
| Screen resolution | 320 x 240 |
| Battery | 1 x lithium battery, 500 Mah (included) |
| Environment temperature | 50 °F to 122 °F (10 °C to 50 °C) |
| Environment humidity | 10% to 90% RH |

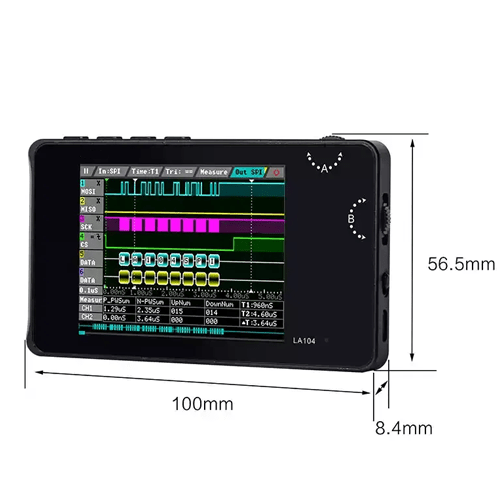

| Size | 3.9 in x 2.2 in x 0.3 in (100 mm x 56 mm x 8.6 mm) |
| Weight | 0.2lb (83 g) or (2.9 oz) |
