Overview

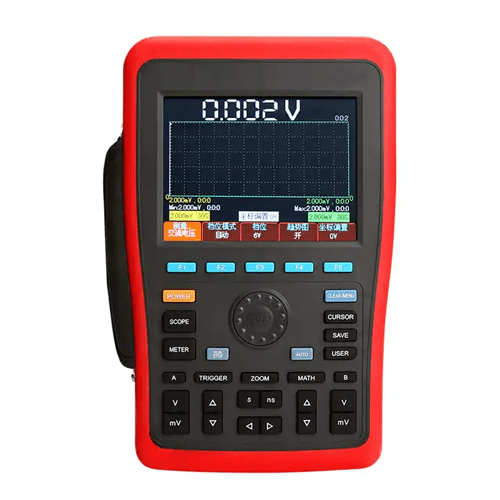

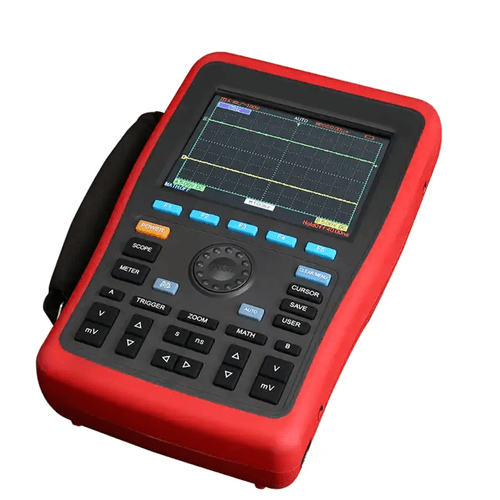

Emissions And Stack digital multi meter achieves the perfect combination of ease of use, excellent technical specifications and many functions to help users complete their testing work faster. The scale and position knobs provide intuitive operation that conforms to traditional instrument habits, and users do not have to spend a lot of time learning and familiarizing themselves with the operation of digital handheld digital storage oscilloscopes to become proficient in using them.
Features
- Efficient auto-setup for quick, accurate signal adjustment, including DC components
- Automatically adjusts vertical and time base gears with signal changes
- Fine window expansion for precise analysis of waveform details and overviews
- Multi meter with 5999-bit display and trend graph for intuitive observation
Technical Specification
| Bandwidth | 200 MHz |
| Channels | 2 |
| Sampling rate | 1 GS/s |
| Rise time | ≤1.8 ns |
| Memory depth | 7.5 k pts |
| Vertical sensitivity | 5 mV or div to 50 V or div |
| Time base scale | 2 ns or div-50 s or div |
| Storage modes | Setup, waveform, bitmap |
| Trigger modes | Edge, pulse width, video and alternative |
| Interfaces | USB host, USB OTG (UTD1202C Optional) |
| Multi meter Specifications | Range |
| DC voltage (V) | 600 mV or 6 V or 60 V or 600 V or 1000 V |
| AC voltage (V) (45Hz to 400Hz) | 600 mV or 6 V or 60 V or 600 V or 700 V |
| DC current (A) | 6 mA or 60 mA or 600 mA 6 A |
| AC current (A) (45Hz to 400Hz) | 6 mA or 60 mA or 600 mA 6 A |
| Resistance (Ω) | 6 kΩ or 60 k or 600 kΩ 600 Ω or 6 MΩ or 60 MΩ |
| Capacitance (F) | 6 nF or 6 mF 60 nF or 600 nF or 6 μF or 60 μF or 600 μF |
| Power | Li-ion battery: 7.4 V 4400 mAh; DC adapter: 100 V to 240 V 50 Hz or 60 Hz input, 9 V or 4 A output |
| Display | 5.7 in (14.48 cm) TFT LCD, QVGA (320×240) |
| Product colour | Red and grey |
| Product size | 10.55 in x 6.61 in x 2.36 in (268 mm x 168 mm x 60 mm) |
| Product weight | 3.96 lb (1.8 kg) |
| Display count | 6000 |
