Overview
Emissions And Stack digital oscilloscope portable logic analyzer is a 5-trace 4-channel digital oscilloscope for common electronic engineering tasks. Its CPU is based on ARM Cortex M3, adopting FPGA to manage the control & data buffering of ADC. A built-in 8 MB USB disk enables users to store waveforms & upgrade firmware. It also provides 4 application areas, convenient for users to load & upgrade at most 4 kinds of application firmware.
Features

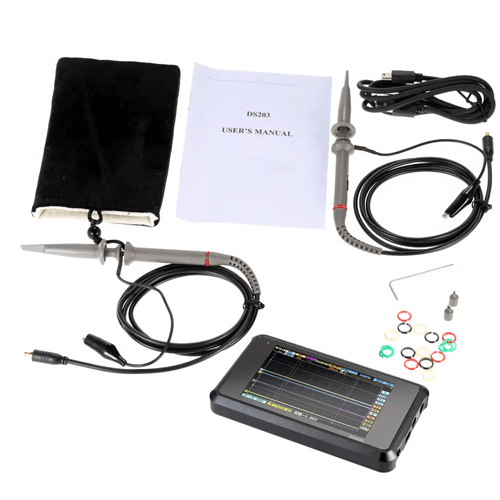

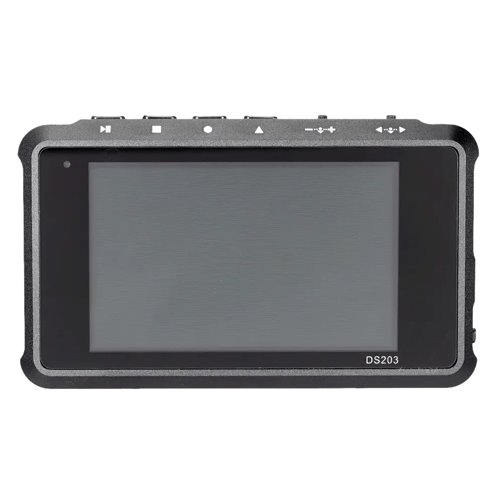

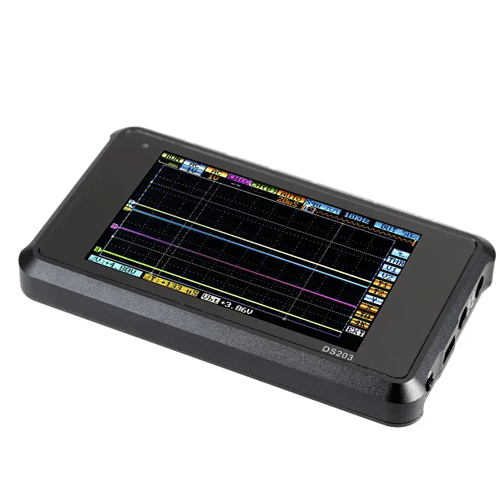

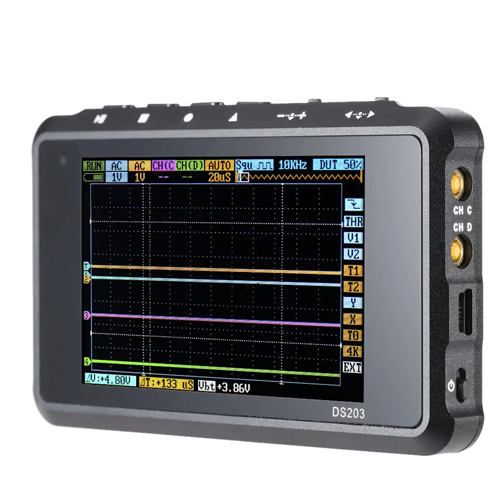

- Portable with a 400 x 240 Colourful TFT display
- 4-channel oscilloscope with 8 MHz bandwidth and 1 M input impedance
- Synchronous mode Auto, Normal, Single, None, Scan
- Inbuilt 8 MB U-disk storage for waveform data and images
- Rising or falling edge trigger, positive or negative pulse width trigger
- Auto measurements, mathematical waveforms & inbuilt signal generator
- Math waveform [CH_A] + [CH_B], [CH_A] – [CH_B], [CH_C] | [CH_D]
- Math waveform [CH_C] & [CH_D], Rec A, Rec B, Rec C, Rec D
- Inbuilt signal generator or 10 Hz 8 MHz square wave (duty adjustable)
- 10 Hz to 8 MHz or 10 Hz 20 kHz Sine or Square or Triangle or Sawtooth wave
- Powered by a 3.7 V 1000 MAh lithium battery with USB charging
Technical Specifications
| Analog Bandwidth | 8 MHz |
| Max. Sample Rate | 72 MS a/s |
| Analog Input Impedance | 1 M |
| Memory Depth | Single Channel 8 K, 4-channel 4 x 4 K |

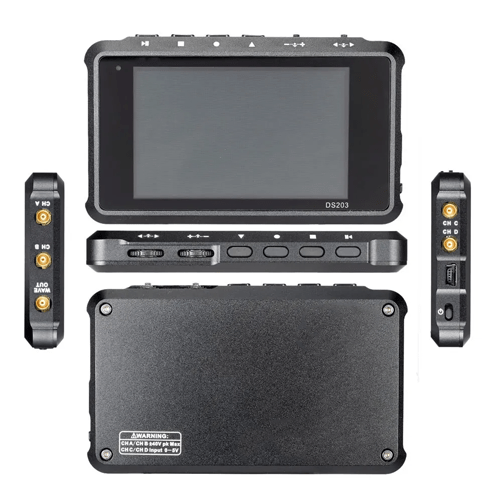

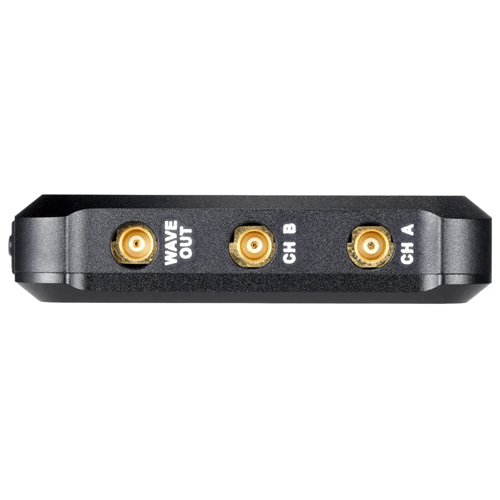

| 2-Analog Channel | [CH_A], [CH_B] |
| 2-Digital Channel | [CH_C], [CH_D] |
| Max. Input Voltage | 80 Vpp (X 1 probe) 400 Vpp (X 10 probe) |
| Vertical Sensitivity | 50 mV to 10 V/div (1-2-5 STEP) (X 1 probe) 200 mV to 100 V/div (1-2-5 STEP) (X 10 probe) |
| Horizontal Sensitivity | 0.1 uS/Div to 2 S/Div (1-2-5 sequence step) |
| Power Supply | Built-in 1000 mA Lithium Battery |
| Charging Interface | USB Interface |
| Operating Temperature | ?32 ?F to 122 ?F (0 ?C to 50 ?C) |
| Storage Temperature | -4 ?F to 40 ?F (-20 ?C to 60 ?C) |
| Dimension | 3.9 in x 2.3 in x 0.5 in (99 mm x 59 mm x 13 mm) |
| Weight | 0.3 lb (117 g) (Metal Case) |
