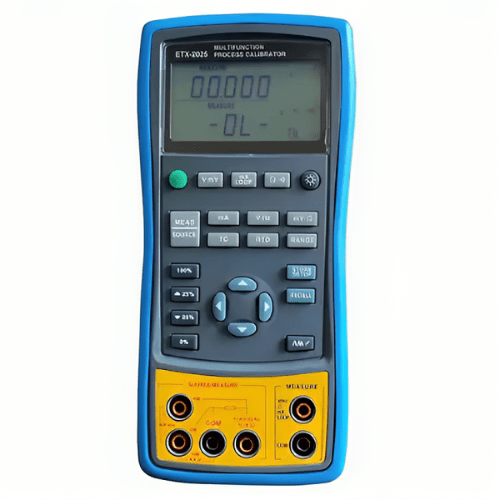

Features

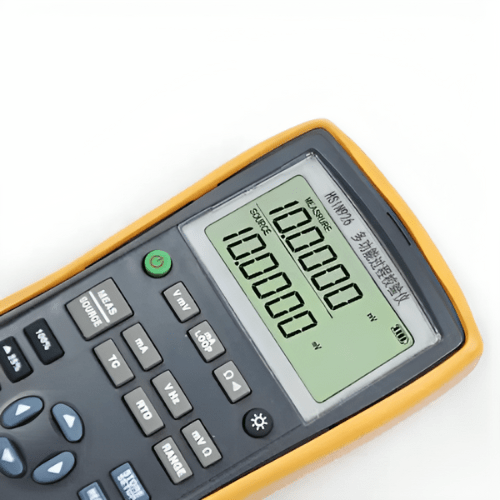

- A split-screen display
- Calibrates a transmitter using the split-screen
- The measure of thermocouple provides automatic reference junction
- Automatic and manual cold end temperature compensation for TC
- Manual stepping and automatic stepping and ramping
- Super-strong protection

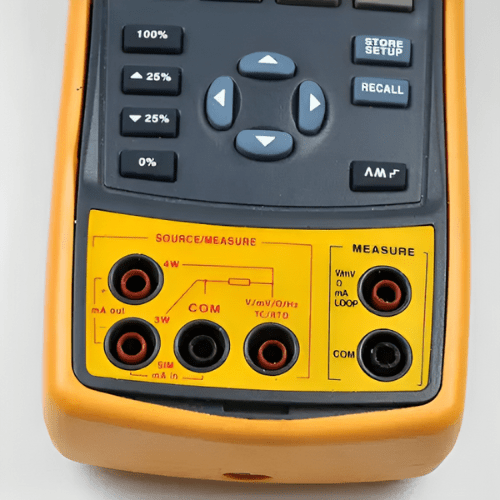

- Automatic protection against the signal terminals
Technical Specifications
| 28 V (upper display) | -33 V to 33 V |
| 200 mV (upper display) | -200 mV to 200 mV |
| 50 V (lower display) | -1 V to 60 V |
| 100 mV (lower display) | -15 mV to 125 mV |
| 20 mA (upper display) | -24 mA to 24 mA |
| 20 mA (loop of upper display) | 0 mA to 24 mA |
| 20 mA (lower display) | 0 mA to 24 mA |
| Dc V | 0 V to 50 V (the upper display ±30 V) |
| Dc mA | 0 mA to 24 mA (the upper display ±24 mA) |
| Frequency | 1.000 Hz to 100.00 kHz |
| Resistance | 0 Ω to 3200 Ω |
| RTD | Pt100, Pt1000, Cu50, Cu100 |
| Dc Mv | 0 mV to 100 mV (the upper display ±200 mV) |
| Temperature | 14 °F to 64 °F (-10 °C to 18 °C) |

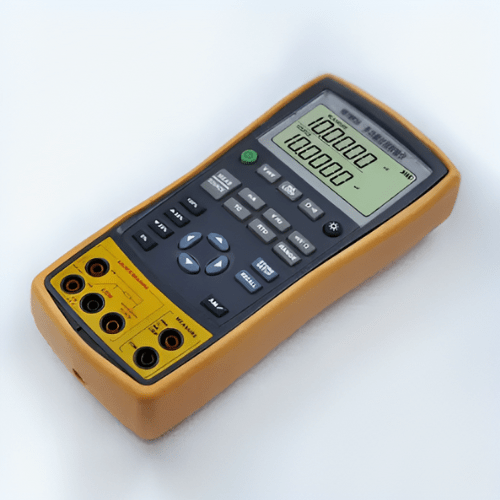

| Dimension | 7.87 in x 3.78 in x 1.85 in (200 mm x 96 mm x 47 mm) |
| Weight | 1.44 lb (650 g) |
