Overview

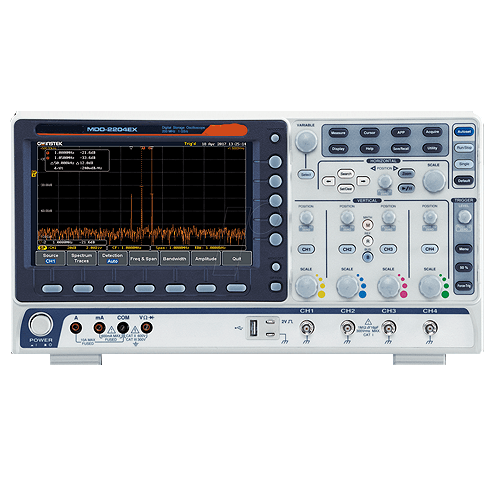

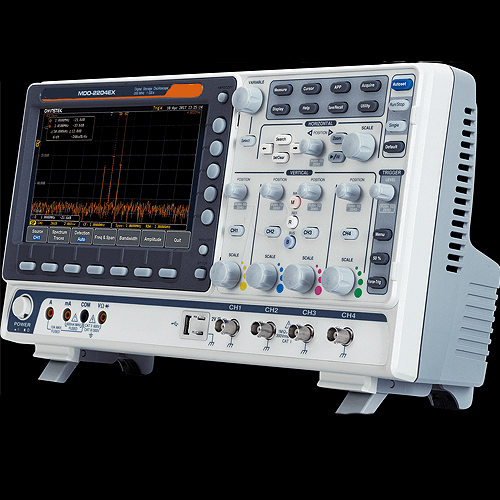

Emissions And Stack digital storage oscilloscope 200 MHz, 4-Channel Digital Storage Oscilloscope, with Spectrum Analyzer, Dual Ch. 25 MHz AWG, DMM & Power supply.
Features
- 200 MHz bandwidth, 4 channels
- Comes standard with a spectrum analyser
- Dual channel 25 MHz AWG, DMM and power supply
- Maximum real time sample rate is 1GSa/s
- Free Frequency Response Analyzer Software
- Per Channel 32.5 ft (10 m) memory depth and VPO waveform display technology
- Waveform update rate up to 120,000 wfms/s
- 8 in (20.32 cm) WVGA TFT LCD display
- Maximum 1M FFT provides higher frequency domain resolution measurements
- High, low and band pass filter functions
- 29,000 segmented memories and waveform search functions
- Data log function can track signal changes up to 1000 hours
- Network storage function
Technical Specifications
| Bandwidth | 200 MHz, 4 channels |
| Included Tools | Spectrum analyser, dual channel 25 MHz AWG, DMM, power supply |
| Sample Rate | Maximum real-time sample rate of 1 GSa/s |
| Analyzer Software | Free Frequency Response Analyzer Software (Download from manufacturer website only) |
| Memory Depth per Channel | 32.5 ft (10 m), VPO waveform display technology |
| Waveform Update Rate | Up to 120,000 wfms/s |
| Display | 8 in (20.32 cm) WVGA TFT LCD |
| FFT Resolution | Maximum 3.25 ft (1 M) FFT for higher frequency domain resolution measurements |
| Filter Functions | High, low, and band-pass filters |
| Segmented Memories | 29,000, with waveform search functions |
| Serial Bus Trigger and Decoding | I2C or SPI or UART or CAN or LIN |
| Data Log Function | Tracks signal changes up to 1000 hours |
| Network Storage Function | Yes |
| Mask Test Function | Yes |
