Overview

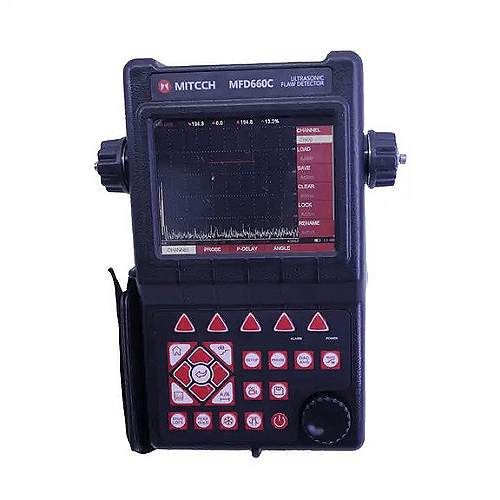

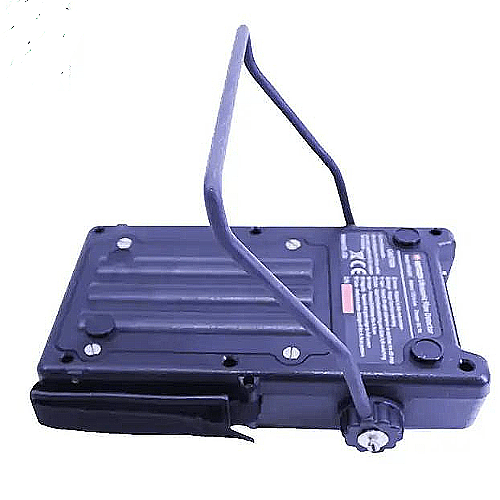

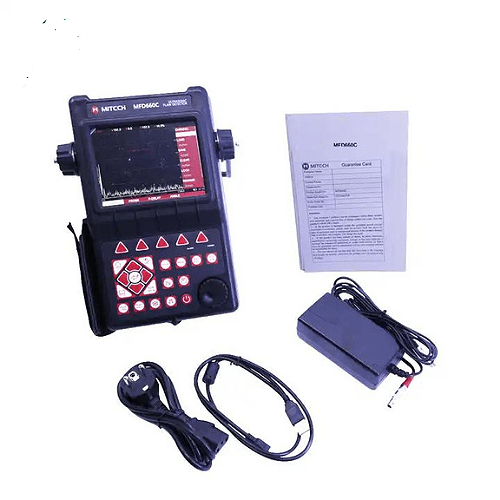

Emissions and Stack digital ultrasonic flaw detector this instrument can be widely used in locating and sizing hidden cracks, voids, disbands, similar discontinuities in welds, forgings, billets, axles, shafts, tanks, pressure vessels, turbines, structural components. when presence of a defect in a work piece with homogenous material, due to the defects, it will inform the interface among different mediums between the defect and work piece as the acoustic resistance is different at the interface after the pulsing ultrasonic wave met the interface, it will produce reflection.
Technical Specifications
| Display Resolution | 640 pixels × 480 pixels fully digital true colour TFT LCD |
| Bandwidth | 0.5 MHz to 15 MHz automatic matching according to the probe frequency |
| Material Velocity | 100 m/s to 20000 m/s |
| Dynamic Range | ≥ 36 dB |
| Vertical Linear Deviation | ≤ 2.0% |
| Horizontal Linear Deviation | ≤ 0.1% |
| Resolution | > 40 dB (5 P 14) |
| Noise Level | ≤ 8% |
| Power Supply | DC 9 V |
| Working Time | >10 hrs |
| Video Recording | More than 100 hrs |
| Relative Humidity | 20% RH to 95% RH |
| Pulse Energy | 200 V, 300 V, 400 V, 500 V selectable, suitable for various probe |
| Pulse Width | 30 ns to 510 ns range with continuous adjustment to match the different frequency probes |
| Operating Temperature | 14 °F to 122 °F (-10 ℃ to 50 ℃) |
| Sensitivity Leavings | 62 dB (flat bottomed deep hole) 7.87 in (200 mm) |
| Measuring Range | 0 in to 393.70 in (0 mm to 9999 mm) in steel |
| Overall Dimensions | 1.02 in x 8.66 in x 2.75 in (280 mm × 220 mm × 70 mm) |
| Total Weight | 13.22 lb (6.0 kg) |
