Overview

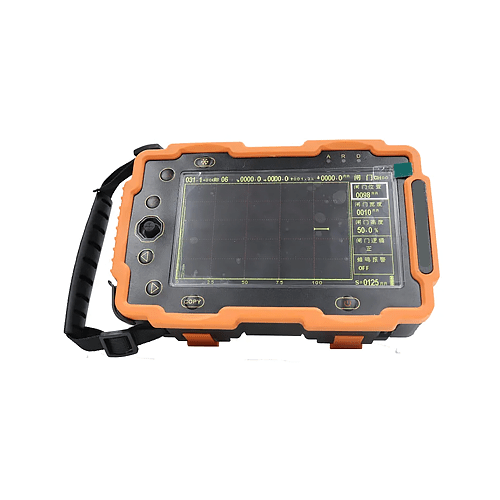

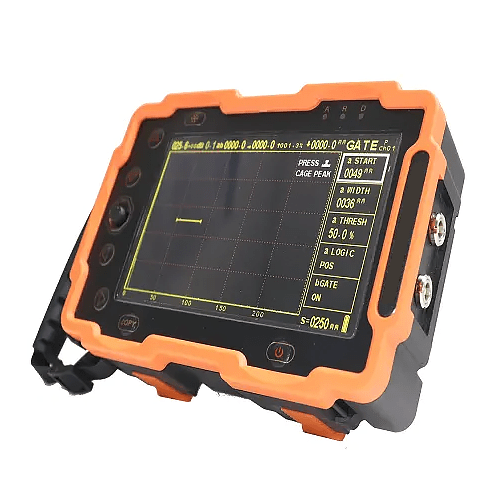

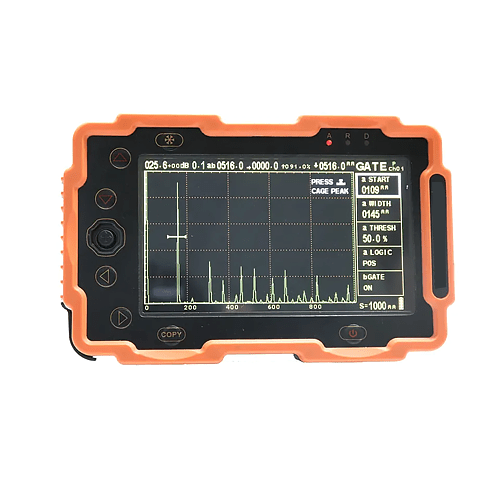

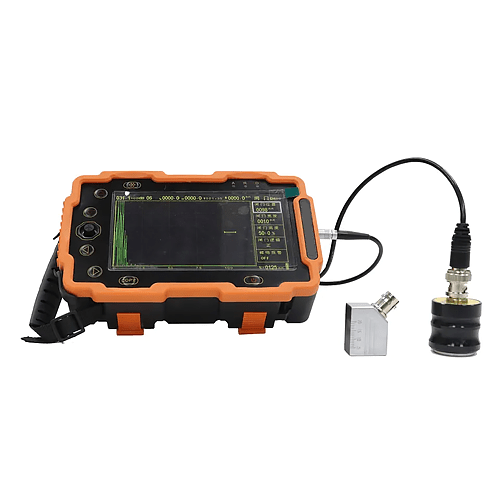

Emissions and Stack digital ultrasonic flaw detector embodies the advanced ultrasonic flaw detector design and manufacturing technology, perfectly integrates technology and humanity, elegance and fashion. It is a digital ultrasonic flaw detector with practical functions and excellent performance, and its unique transmit pulse repetition frequency, amplitude and width adjustment function, high speed USB interface. Completely independent intellectual property rights, easy to upgrade the instrument.
Features
- Small size, lightweight, one handed operation
- High sensitivity 110 dB gain
- Strong molded rubber housing can withstand the worst of the environment
- The screen size conforms to the ergonomic design
- 500 groups of flaw detection technology and data, storage permanent
- Lithium battery, Low power electronics, can work continuously for 10 hours
Technical Specifications
| Gain Range | 0 dB to 11dB (0.1 dB, 2.0 dB, 6.0 dB, 12.0 dB Step Forward) |
| Bandwidth | 0.5 MHz to 15 MHz |
| Horizontal Linearity | < 0.1 % |
| Vertical Linearity | < 3.0 % |
| Resolution | > 36 dB |
| Dynamic Range | > 36 dB |
| Sensitivity Margin | > 60 dB |
| Print Out | Store waveforms and data |
| Monitor | 5.0 in True colour display 480 in x 320 in |
| Battery Working Time | > 10 Hrs |
| Power Supply | 4.2 V DC, 220 V AC |
| Operating Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Detection Zone | 0 in to 236.22 in (0 mm to 6000 mm) |
| External Dimensions | 6.38 in x 4.13 in x 1.57 in (162 mm x 105 mm x 40 mm) |
| Machine Weight | 2.60 lb (1.18 Kg) Including Batteries |
