Overview

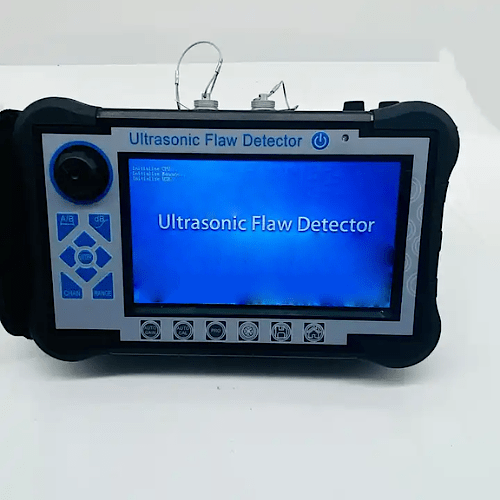

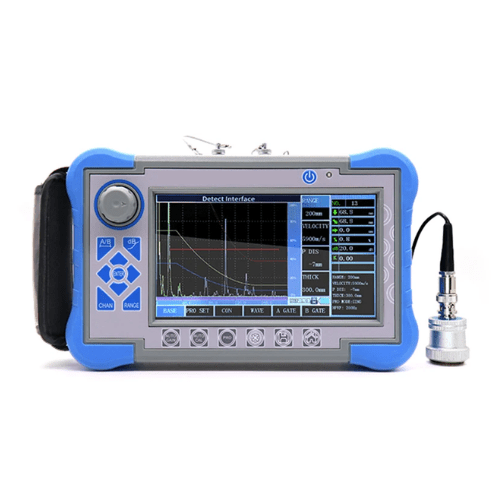

GAO Tek digital ultrasonic crack detection is an advanced type, which is the touch screen, can quickly, easily, and without damage, accurately detect, locate, evaluate, and diagnose various defects inside the workpiece such as cracks, welds, pores, sand holes, inclusions, folding, it has been applied for electric power and pressure vessel, steel structure, military, aerospace, railway transportation, automobile, machinery and other fields.
Features
- High precision quantification and positioning for near and distance detection
- Small near field blind zone suitable for small diameter and thin-walled pipes
- Switch between three scales Depth Horizontal Distance freely
- Auto gain peak envelope and peak memory functions for improved detection
- Automated flaw detection process recording and dynamic playback.
- Real time clock recording for tracking flaw detection date and time
- Power down protection to prevent data loss.
- Flaw detection parameters can be automatically tested or preset.
- Digital reject without affecting gain and linearity.
- Gain compensation for attenuation correction
Technical Specifications
| Display | 4.5 in LCD with EL backlight. |
| Operation Mode | Button, Rotary, Touch Screen |
| Power Supply | Lithium-ion Battery |
| Battery Capacity | 5.0 mAh |
| Adapter Input | DC 100 V to 240 V and 50 Hz to 60 Hz |
| Adapter Output | AC 12 V |
| Adapter Power | 36 W |
| Data Storage | SD card (16 G) |
| Working Time | > 08 hrs |
| Working Temperature | 14 ℉ to 113 ℉ (-10 ℃ to 45 ℃) |
| Storage Temperature | -4 ℉ to 140 ℉ (-20 ℃ to 60 ℃) |
| Dimension | 9.64 in x 6.10 in x 2.16 in (245 mm x 155 mm x 55 mm) |
| Weight | 2.60 Ib (1.18 kg) |
