Overview

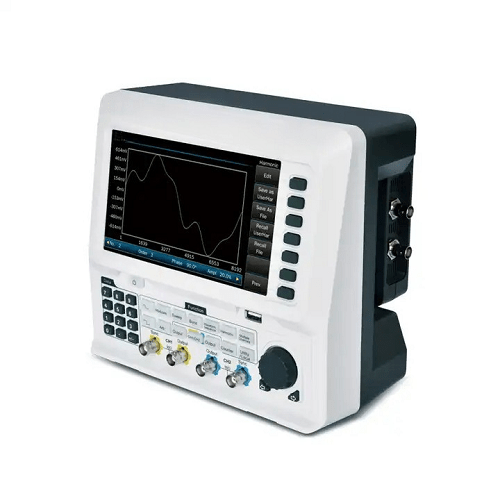

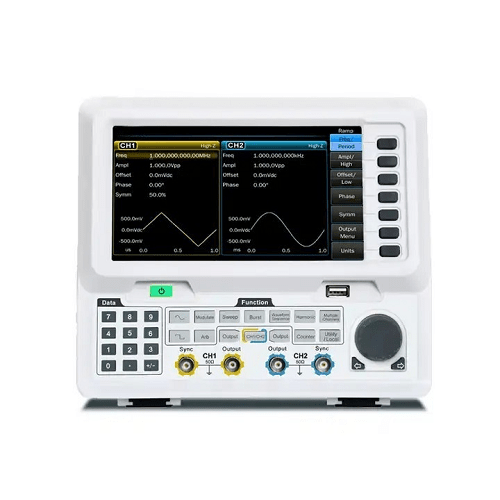

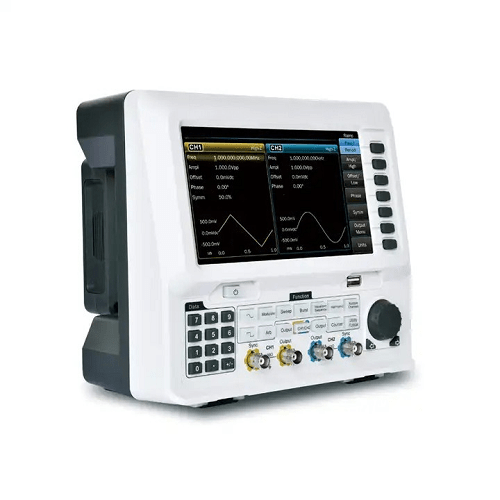

Emissions And Stack dual channel function generators with frequencies up to 100 MHz, 16Bit Resolution, and arbitrary waveforms of up to 16 Mpts, Emissions And Stack Dual Channels Function Generators can reproduce any waveform with high quality. The new portable design and optional power amplifier make this one of the most flexible and popular generators on the market.
Features
- 250 MSa/s sample rate
- 16-bit vertical resolution
- 16 Mpts waveform length
- Rising or falling time of square <=4.2 ns

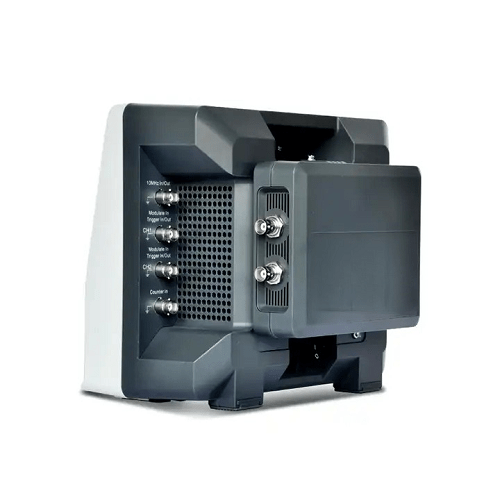

- Removable PA interface
- High precision frequency counter
- 7 in (17.78 cm) touch screen display
Technical Specification
| Pulse | 1 μHz to 25 MHz |
| Vertical Resolution | 16 bits |
| Display | 17.78 cm (7 in) touch display |
| Duty Cycle | 0.0001% to 99.9999% |
| Sample Rate | 250 MSa/s |
| PRBS | 1 kbps to 60 Mbps |
| Ramp | 1 μHz to 3 MHz |
| Resolution | 1 μHz or 12 digits |
| Accuracy | ± (20 ppm + 14 pHz) |
| Counter Frequency Range | 1 mHz to 400 MHz |
| Power | AC 100 V to 120 V, 400Hz ±10% |
| Dimension | 8.66 in x 7.48 in x 6.53 in (220 mm x 190 mm x 166 mm) |
| Weight | 7.27 lb (3.3 kg) |
