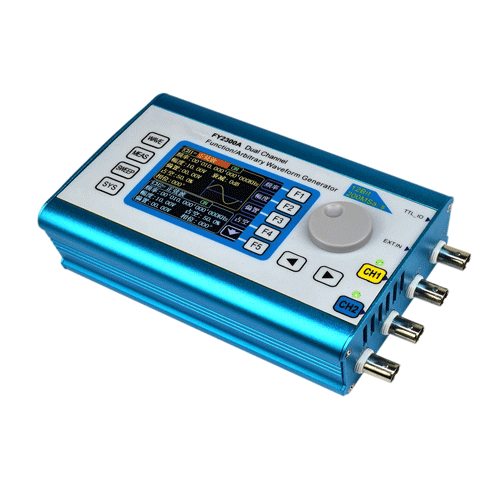

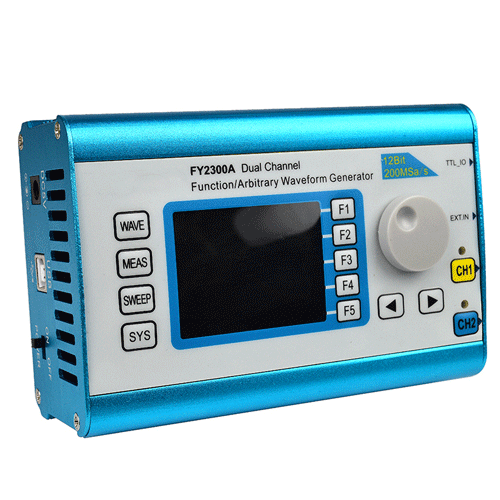

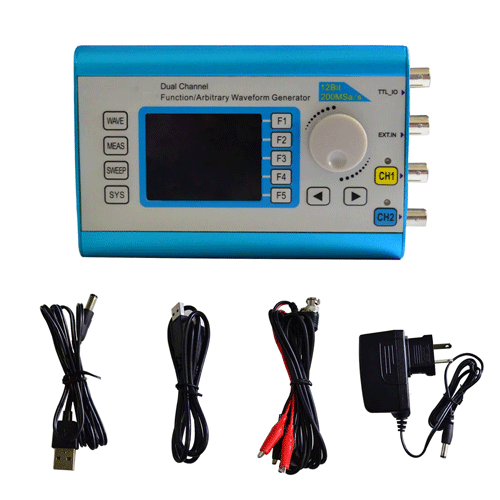

Emissions And Stack Dual Channel Waveform Generator

Overview

Emissions And Stack dual channel waveform generator series dual-channel function/arbitrary waveform generator is a set of function signal generator, arbitrary waveform generator, pulse signal generator, frequency sweeper, counter and frequency meter in one function, high performance, cost-effective, multi-function Signal generator. Rich shortcut keys greatly simplify the complex operation process and greatly enhance the operability of the instrument. Users do not have to spend a lot of time to learn and become familiar with the operation of the instrument, and they can use it proficiently. Particularly suitable for electronic enthusiasts, scientific research institutions and high-tech enterprises. The instrument adopts DDS direct digital synthesis technology to produce accurate, stable, low-distortion output signals. All parameters are calibrated by internal programs, standard PC software, all functions of the instrument can be controlled by the host computer software and can use the upper position. The machine software saves the arbitrary waveform and saves the output waveform to the signal generator, the communication protocol is open, making the secondary development very simple, large-scale integrated circuit, surface mount technology, high reliability, long service life, and output short-circuit protection Yes, all signal outputs can work 60s under load short-circuit conditions.

Features

• It uses a professional 14 Bit high-speed D or A chip
• Instead of a 12-bit D or A resistor network built
• The higher the resolution, the smoother the waveform details
• The two solutions will immediately jump on the paper
• The FY6600 series sampling rate is upgraded to 250MSa or s
• The 200MSa or s sampling rate at the same frequency
• Its waveform memory depth upgrade to 8192 × 14 bits
• High-precision signal details can be restored
• The waveform length is 4 times that of your partner
• The industry’s original very practical VCO function
• FY6600 series phase resolution up to 0.1 degrees
• Users can more accurately control the delay of the two signals
• The signal output terminal using pure copper material
• Not plastic-coated zinc alloy material, the details are attitude
• The instrument uses imported long-life keys, feel comfortable
• 4 TTL output makes the application of the instrument more extensive
• First two-channel waveforms are displayed at the same time
• Small signal is particularly good
• FY6600 can output 1 mVPP small signal amplitude resolution of 1 mV
• Can be done 1 mVpp, 10 mVpp, 100 mVpp, 1 Vpp
• The maximum amplitude range 1 mVpp to 20 Vpp stepless adjustment
• The frequency range is wider
• The maximum frequency range of sine wave is 1 uHz to 60 MHz
• The maximum range of square wave is 1 uHz to 25 MHz
• Other wave frequency range is 1 uHz to 20 MHz
• The full range of frequency resolution is 1 uHz
• The whole range of frequency is not divided, direct digital setting
• The rising edge time within the square wave 5 V is as low as 7 nS
• The maximum output frequency can reach 25 MHz
• More abundant waveform types
• The instrument not only presents 33 kinds of common waveforms
• But also provides users with up to 64 groups (8192 × 14 Bit)
• The pulse width to be accurately set between 20 nS to 1 S
• The instrument output waveform totals 97 groups
• Counter function has DC and AC two kinds of coupling methods
• The maximum measurement frequency of reach 100MHz
• The minimum measurement frequency is 0.01Hz

Technical Specifications
