Overview

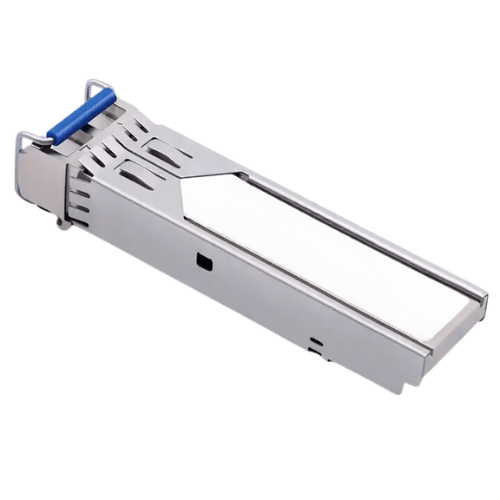

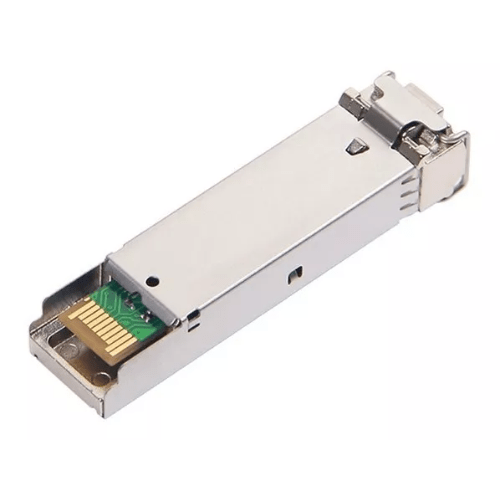

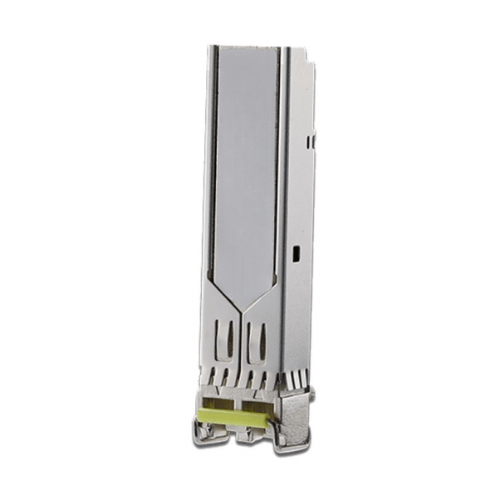

Emissions And Stack Dual Data-Rate SFP Transceivers are high-performance, cost-effective modules supporting dual data-rate of 1.25 Gbps / 1.0625 Gbps and 20 km (about 12.43 mi) transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features
- Dual data-rate of 1.25 Gbps or 1.063 Gbps operation
- 1310 nm FP laser and PIN photodetector for 10 km (6.21 mi) transmission
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Internal Calibration or External Calibration
- Compatible with SONET OC-24-LR-1
- Compatible with RoHS
- +3.3 V single power supply
- Operating case temperature:
- Standard: 32 °F to 158 °F (0 °C to 70 °C)
- Extended: -4 °F to 185 °F (-20 °C to 85 °C)
- Industrial: -40 °F to 185 °F (-40 °C to 85 °C)
Technical Specifications
| Data rate | 1.25 Gbps or 1.063 Gbps |
| Transmitter Centre Wavelength | 1260 nm to 1360 nm |
| Spectral Width (RMS) | 4 nm |
| Average Output Power | -10 dBm to -3 dBm |
| Extinction Ratio | 9 dB |
| Optical Rise / Fall Time (20% to 80%) | 0.26 ns |
| Data Input Swing Differential | 400 mV to 1800 mV |
| Input Differential Impedance | 90 Ω to 110 Ω |
| Tx disable | 2.0 V to |
| Tx Enable | 0 V to 0.8 V |
| TX Fault | 2 V |
| TX Normal | 0 V to 0.8 V |
| Receiver Centre Wavelength | 1260 nm to 1580 nm |
| Receiver Sensitivity | -20 dBm |
| Receiver Overload | 0 dBm |
| LOS De-Assert | -22 dBm |
| LOS Assert | -30 dBm |
| LOS Hysteresis | 1 dB to 4 dB |
| Data Output Swing Differential | 400 mV to 1800 mV |
| High LOS | 2 V |
| Low LOS | 0 V to 0.8 V |
| Temperature | Standard: 32 °F to 158 °F (0 °C to 70 °C)
Extended: -4 °F to 185 °F (-20 °C to 85 °C) Industrial: -40 °F to 185 °F (-40 °C to 85 °C) |
