Overview

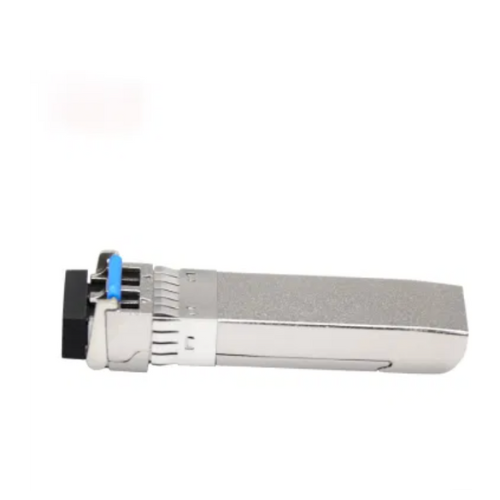

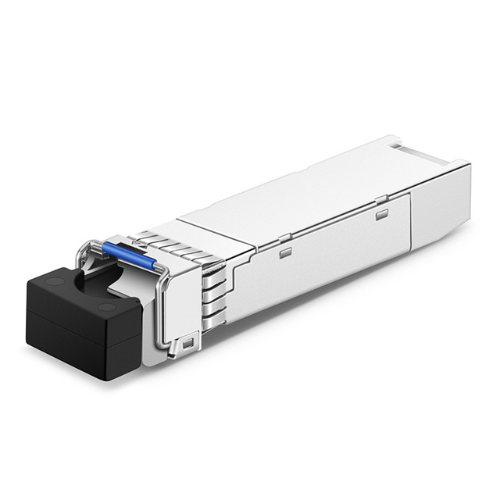

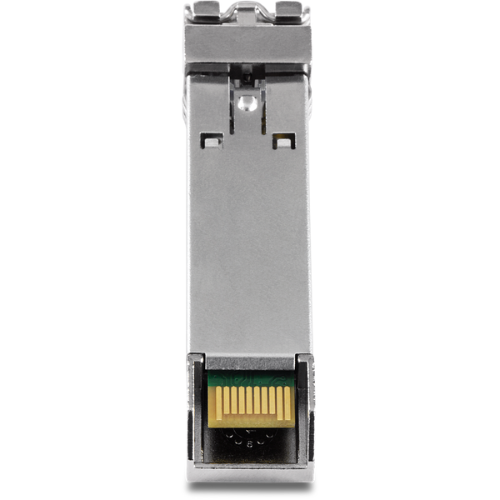

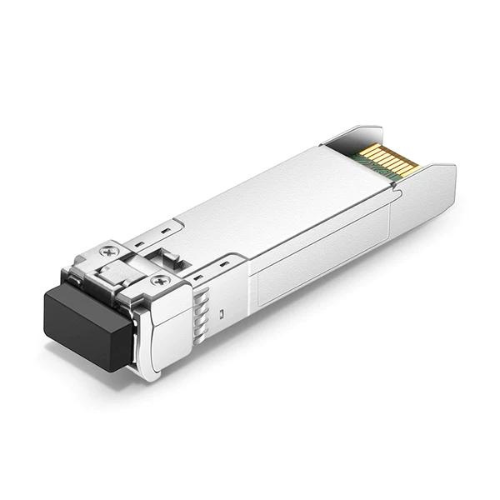

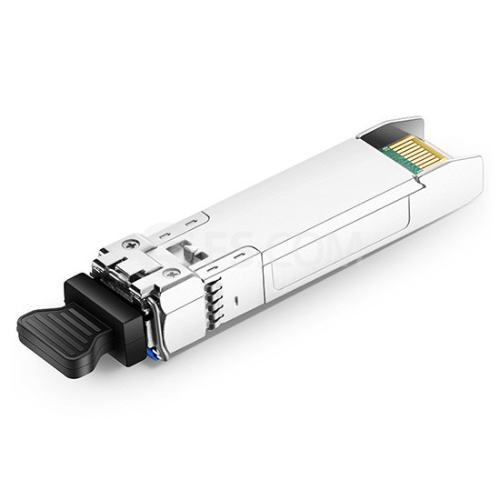

Emissions And Stack dual fiber SFP CWDM transceivers are a high-performance, cost-effective module which have a single LC optics interface. They are compatible with the small form factor pluggable multi-sourcing agreement (MSA) and digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver, and the transmitter uses a 1550 nm DFB laser, up to 21 dB link budge ensure this module 1000 Base-EX Ethernet 24.85m (40km) application.
Features
● Up to 1.25 Gb/s Data Links
● Hot-Pluggable
● Single LC connector
● Up to 49.70 mi on 9/125μm SMF
● Single +3.3 V Power Supply
● Monitoring Interface Compliant with SFF-8472
● Low power dissipation <1 W typically
● Operating temperature range 32 °F to 158 °F
● RoHS compliant and Lead Free
Specifications
| Certification | CE, ISO, RoHS, GS |
| Output Power | -9 dBm to 3dBm |
| Distance | 49.71 mi (80 km) |
| Wavelength | 1270 nm to 1330 nm |
| Data Rate | 10 Gbps |
| SMF | 9 um to 125 um |
| Low power dissipation | <1 W |
| Power Supply | +3.3 V |
| distance | 49.70 mi |
| Operating temperature range | 32 °F to 158 °F (0 °C to 70 °C) |
