Overview

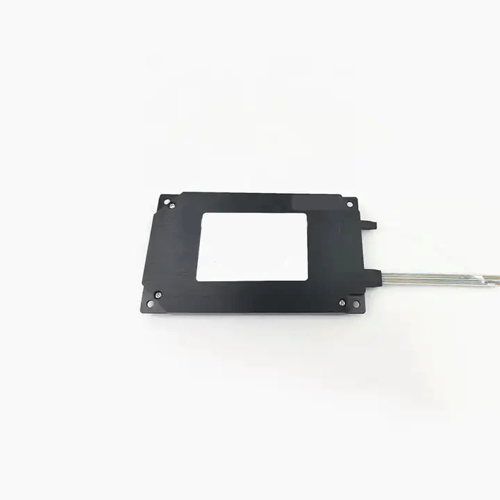

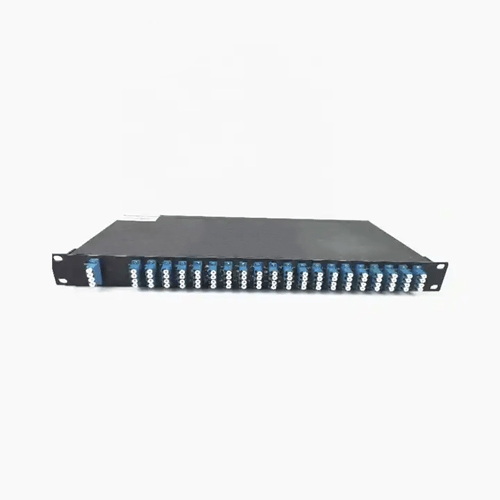

Emissions And Stack DWDM mux is a high performance DWDM mux device operating on 100 GHz channel spacing without the need for temperature stabilization. The planar processed silica-on-silicon chips comprise arrayed channel waveguides to separate or combine multiple wavelengths. A thermal AWG s allow multiplexing and demultiplexing of DWDM signals over a wide operating temperature range, without the need for heater drive and monitoring electronics. These AWG offer low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package.
Features
- DEMUX functionality
- Compact package
- Multi-channel number
- Telcordia GR-1209 and GR-1221 compliant
- A thermal design, electrical power is not required
- Low insertion loss and low PDL and high channel isolation
Technical Specifications
| Channel Spacing | 100 GHz |
| Nos of Channel | 40 channel |
| Channel Frequencies | ITU Grid |
| Available Channel Frequency Range | 191.70 THz |
| Channel Passband | -12.5 GHz |
| Passband Ripple | 1.0 nm |
| Bandwidth | 0.32 dB |
| Center Wavelength Accuracy | -0.05 nm |
| Adjacent Channel Isolation | 27 dB |
| Non-Adjacent Channel Isolation | 30 dB |
| Total Cross Talk | 24 dB |
| Directivity | 45 dB |
| Return Loss with connectors | 40 dB |
| Chromatic Dispersion | -20 ps |
