Overview

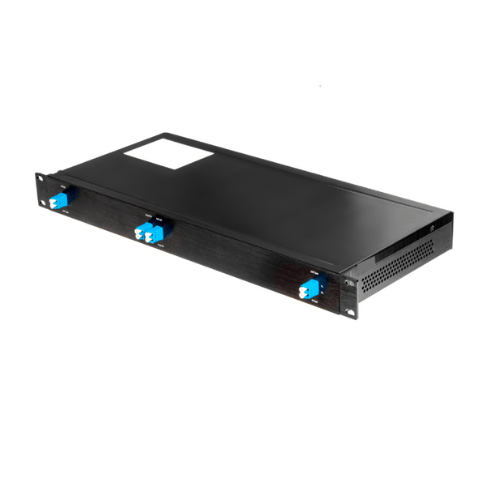

Emissions And Stack DWDM OADM Channels in 1U Chassis or LGX package enable effortless addition or dropping of 4 Ch DWDM traffic. With full protocol transparency, it suits applications like Ethernet, SDH / SONET, and Fiber Channel. Its design facilitates adaptable network configurations, meeting varied requirements in networking, telecom, and broadcasting.
Features
- Compliant to DWDM ITUT G.694.1 H Band 100 GHz
- Adding or dropping of up to 4 CWDM wavelengths
- Protocol transparent, support 1 G, 10 G, 100 G etc.
- Low insertion loss
- LC or UPC connectors
- Passive, no electric power is required
- High stability and reliability
- 19 in 1U Rackmount system
- Custom design supported
Technical Specification
| Center Wavelength | 21 nm to 60 nm |
| Channel Spacing | 100 GHz |
| Center Wavelength Accuracy | ±0.05 nm |
| Channel Uniformity | <1.0 dB |
| Adjacent channel isolation | >30 dB |
| Nonadjacent channel isolation | >40 dB |
| Directivity | >55 dB |
| Return Loss | >50 dB |
| PDL | <0.15 dB |
| PMD | <0.1 ps |
| Wavelength thermal stability | <0.003 nm / °C |
| Insertion Loss thermal stability | <0.005 nm / °C |
| Power Handling | <300 mW |
| Operating temperature | 32 °F to 158 °F (0 °C to +70 °C) |
| Storage temperature | -40 °F to 185 °F (-40 °C to +85 °C) |
| Dimension | 1.73 in × 18.79 in × 9.84 in (44 mm x 483 mm x 250 mm) |
