Overview
Emissions And Stack ethernet network splitter switches that provide resilient, high-density Layer 3 switching for data centers. Features include multiple-terminals, HD video surveillance, and video conferencing applications. Intelligent iStack clustering, 10 Gbit/s upstream ports and IP v6 forwarding enable use as aggregation switches in enterprise campus networks.Next-generation reliability, security, and energy-saving technologies make S5720-SI Series Switches easy to install and maintain, and an excellent source of low Total Cost of Ownership (TCO).
Features

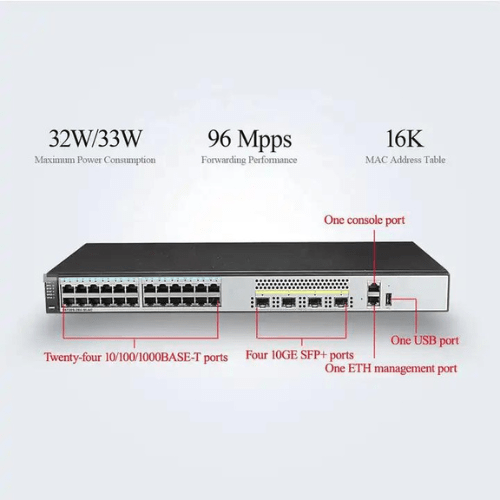

- Flexible Port Expansion
- Ultra-Large Stack Bandwidth
- SVF for Ultra-Simplified Network O & M
- One console port
- One ETH management port
- Four 10 GE SFP ports
Technical Specification
| Switching Capacity | 336 Gbit/s |
| Forwarding Performance | 96 Mpps |
| Fixed Ports | 24 x 1,000 ports |
| MAC Address Table | IEEE 802.1 d compliance and 16 k MAC address entries |
| VLAN Features | 4094 VLANs and Guest VLAN |
| IP Routing | Static route and RIP v1 or RIP v2 |
| SVF | Plug-and-play SVF client |
| Interoperability | VLAN-based Spanning Tree (VBST) (interoperating with PVST ) and Link-type Negotiation Protocol (LNP) |
