Overview

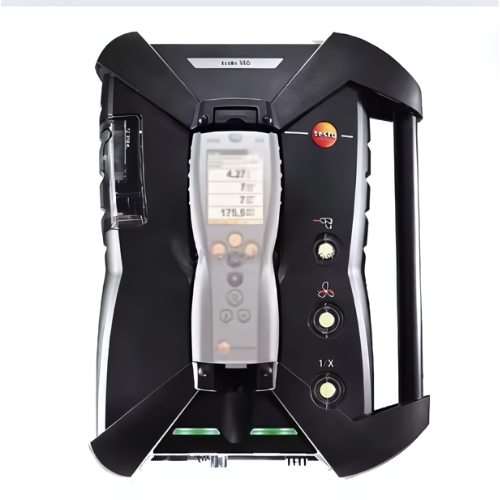

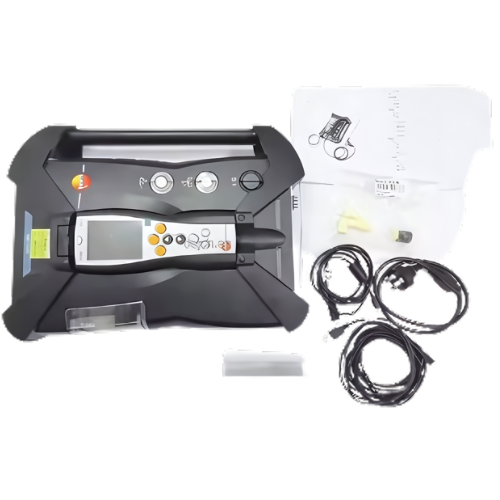

Emissions and Stack exhaust gas monitor – IP40 protection class is ideal for professional flue gas analysis and industrial emissions measurement on industrial engines, burners, gas turbines and in thermal processes: this flue gas analyzer performs a variety of measuring and analysis tasks, impresses over the long term thanks to its heavy-duty industrial design and is also suitable for complex data acquisition. Increased measurement range for unlimited measurements even when gas concentrations are higher. Easy-to-change gas sensors and easy access to wearing parts. Sealed housing with built-in impact protection for use in harsh conditions. Easy operation of the analyzer unit via Control Unit or easy Emission software (both products available separately). The device is a rugged, easy-to-use exhaust gas analyzer designed to meet the highest demands when it comes to carrying out precise industrial emission measurements and providing proper data administration. The Analysis Box can be operated with up to 6 gas sensors, 5 of which are optional. This allows you to select freely from sensors for CO, NO, NO2, SO2, H2S, CxHy and CO2.
Technical Specifications
| Protection Class | IP40 |
| Connectable Probes | 1 x combustion air temperature probe; 1 x flue gas probe; 1 x temperature probe; 1 x differential pressure |
| Product Color | Black |
| Battery Type | Lithium batteries |
| Battery Life | 5 h |
| Power Supply | AC mains unit 100 V to 240 V (50 Hz to 60 Hz) |
| DC Electric Tension Input | 11 V to 40 V |
| Pump Flow | 1 l/min. with through-flow monitoring |
| Max. Pos. Press. /Flue Gas | 0.725 psi / 50 mbar |
| Max. Neg. Press. /Flue Gas | – 4,351 psi / – 300 mbar |
| Max. Dust Load | 20 g/m³ dust in flue gas |
| Dew Point Calculation | 0 °Ctd; 99 °Ctd |
| Max. Humidity Load | 158 °F (70 °C) dew point temperature |
| Trigger Input | Voltage 5 to 12 Volt (rising or trailing edge) pulse width > 1 sec load: 5 V/max, 5 mA, 12 V/max. 40 mA |
| Maximum | 250,000 readings |
| Interface | Data bus; Bluetooth®; USB; IR/IRDA interface; Mains Connection; Trigger Input; Differential Pressure; probe Input/ Probe Inputs; DC-voltage Input; Dilution Gas Inlet For Measurement Range Extension |
| Storage Temperature | – 4.0 °F to 122.0 °F (- 20 to + 50 °C) |
