Overview

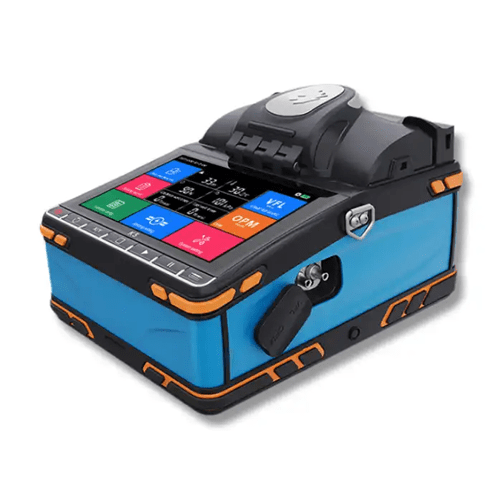

Emissions And Stack fault locator FTTH Fusion Splicer is a new generation of intelligent automatic fiber optic fusion splicing machine with 6 motor core alignment technology and automatic focus. It is fully capable of FTTH, security monitoring and other fiber optic cable fusion splicing projects. The machine adopts industrial 4-core CPU, fast response time, using 5.5 in (13.97 cm) high-definition touch screen, UI operation graphical interface is simple and intuitive; 6 seconds of extremely fast fiber core alignment fusion, fast mode 18 seconds of heating, the efficiency of the work compared to ordinary fusion machine increased by 50%; 7800 mA high-capacity lithium battery, fully charged state can be fused and heated about 240 cores; Built-in 10 mW red light pen, optical power meter and other more functions, convenient and practical. The new generation of optical fiber fusion splicers will bring you a reliable and comfortable experience.
Features

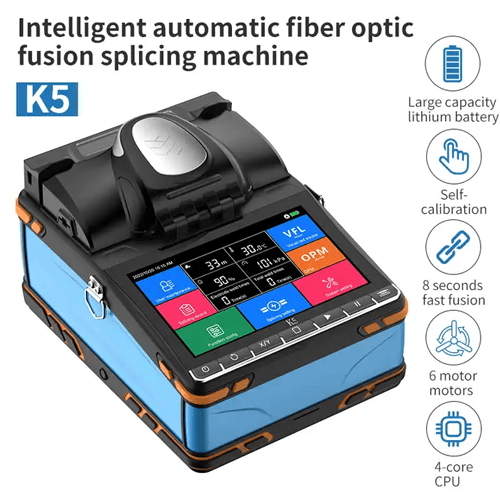

- Large capacity lithium battery
- Self-calibration
- 8 seconds fast fusion
- 6 motors
- 4 core CPU
- Waterproof
- Anti-dust
- Fall protected
- Adaptable to various harsh environments
Technical Specifications
| Function Port | OPM; VFL |
| Motor | 6 motors |
| Battery capacity | 7800 mAh |
| Alignment Method | Fiber core, cladding |
| Fiber Type | Single Fiber Single Mode |
| Splicing time | Fast Mode 6 s |
| Heating time | Fast Mode 13 s |
| USB port output | 5 V or 500 mA |
| Operating Temperature | 50 °F to 122 °F (10 °C to +50 °C) |
| Applicable optical fiber | SMF (G.652), MMF (G.651), DSF (G.653), NZDSF (G.655) |
| Fiber diameter | Cladding layer: 80 to 150 micrometers Coating layer: 0.0039 in to 0.118 in (0.1 mm to 3 mm) |
| Splicing loss | 0.02 dB (SMF) 0.01 dB (MMF)
0.04 dB (DSF/NZDSF) measured by ITU-I shear method |
| Focusing method | 6 motors autofocus |
| Splicing method | Automatic or manual |
| Relay test | 8 s (SMF typical) |
| Screen display | Capacitive 5.5 in touchscreen LCD |
| Magnification | 300 (X or Y), 150 (X or Y synchronization) |
| Splicing record | 1000 groups |
| Typical heating time | 18 s |
| Heating time | 0 s to 60 s |
| Heat shrink sleeve | 0.787 in (20 mm), 1.18 in (30 mm), 1.57 in (40 mm), 2.36 in (60 mm) |

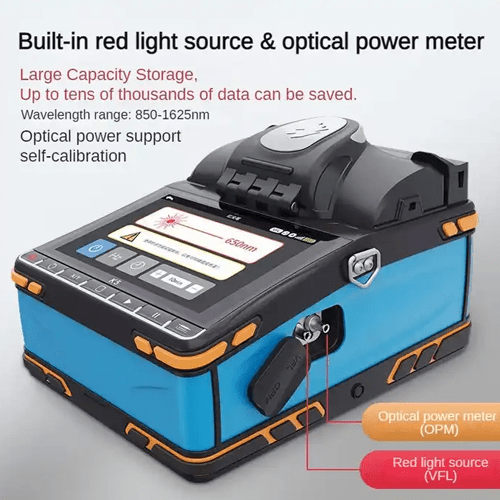

| OPM | Range(dBm): -70 dBm to +3 dBm Wavelength: 850 nm to 1625 nm
Uncertainty: ≥0.5% |
| VFL | ≥10 mW |
| Operation interface | GUI graphical user interface |
| System upgrade | USB Upgrade |
| Electrode Rod life | 3000 times |
| Lighting method | Automatic or manual |
| Charging time | ≤3.5 hrs |
| Output voltage | DC 11.1 V |
| USB port output | 5 V or 500 mA |
| Charger | Input: AC 100 V to 240 V, 50 to 60 Hz Output: DC 13.5 V or 4 A |
| Working environment | Temperature: 5 ° F to 122 °F (-15 ° C to +50 ° C) Humidity: ≤95% RH (no condensation)
Altitude: 0 mi to 3.107 mi (0 m to 5000 m) Wind speed: ≤15 m/s |
| Storage condition | Temperature: -40 ° F to 176 ° F (-40 C to +80 C) Humidity: 0% to 95% |
| Size | 0.39 in x 5.75 in x 4.60 in (10 mm x 146 mm x 117 mm) |
| Weight | 3.84 lb. (1.74 kg): with battery2.73 b (1.24 kg): without battery |
