Overview

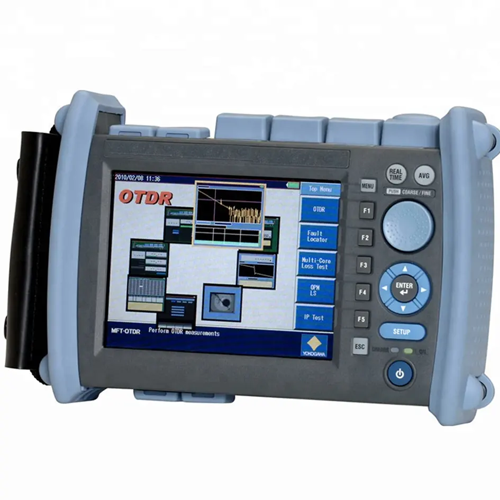

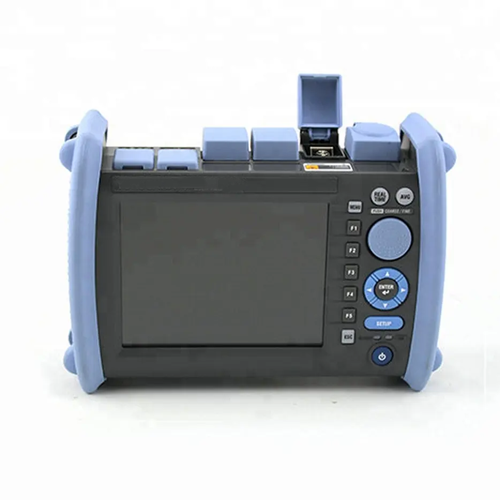

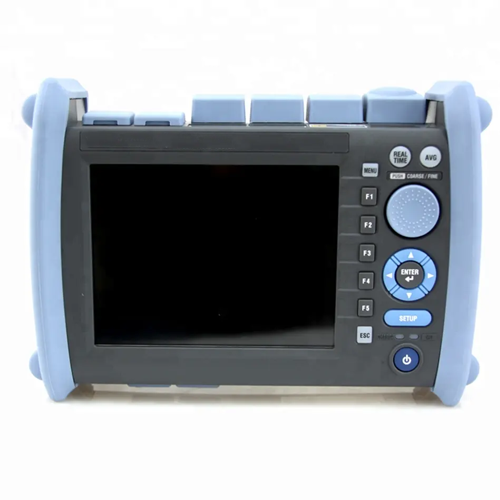

Emissions And Stack Fiber Optical SM or MM or PON OTDR have a 5.7”scontrol and a fiber inspection probe with optional built in OLTS function (light source and power meter), PING test function, and visual fault locator.
Features
- Support PING test
- Video fiber inspection
- 80cm event dead zone
- Optical loss test function optional
- Many SLT, HLT, VFL&LAN options available
Technical Specifications
| Wavelength (nm) |
1310 nm or 1550 ± 25 nm | ||
| Distance Range |
0.31 mi (500 m), 0.62 mi (1 Km), 1.24 mi (2 Km), 3.11 mi (5 Km), 6.21 mi (10 Km), 12.43 mi (20 Km), 31.07 mi (50 Km), 62.14 (100 Km) x 124.27 mi (200 Km) | ||
| Pulse Width |
3 ns,10 ns,20 ns,50 ns,100 ns,200 ns,500 ns,1us,2 us,5 us,10 us | ||
| Dynamic Range |
32 dB or 30 dB | ||
| Event Dead Zone |
2.62 ft (0.8 m) | ||
| Attenuation Dead Zone |
16.4 ft (5 m), type | ||
| Applicable Fiber |
SM (LTU-T G.652) | ||
| Optical Connector |
SC, F C, ASC | ||
| Laser Class |
1 M | ||
| Display |
5.7-in color LCD (640 x 480) | ||
| Battery Operation Time |
6 hours | ||

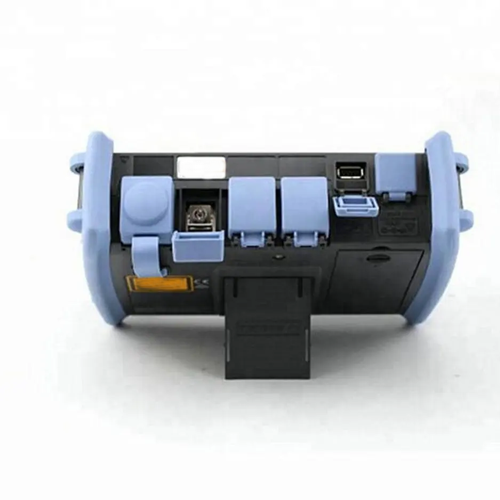

| Interface | USB Port
DC Power |
USB1.1 TYPE A x 1, TYPE B (mini) x 1
For AC adapter |
|
| Dimensions |
8.57 in x 6.18 in x 2.91 in (217.5 mm x 157 mm x 74 mm) | ||
| Mass |
2.2 lb (1 kg) | ||
