Overview

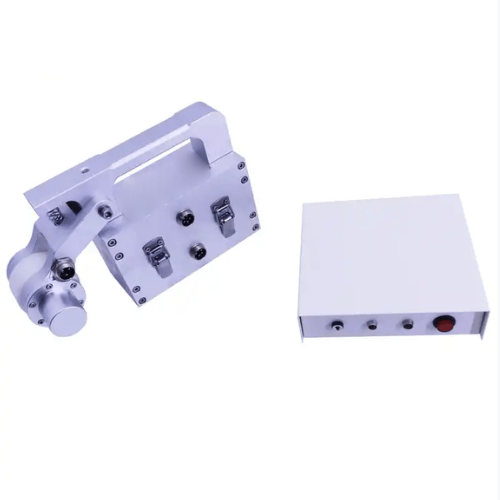

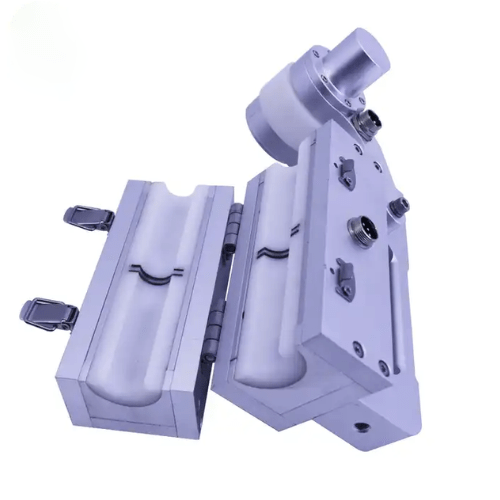

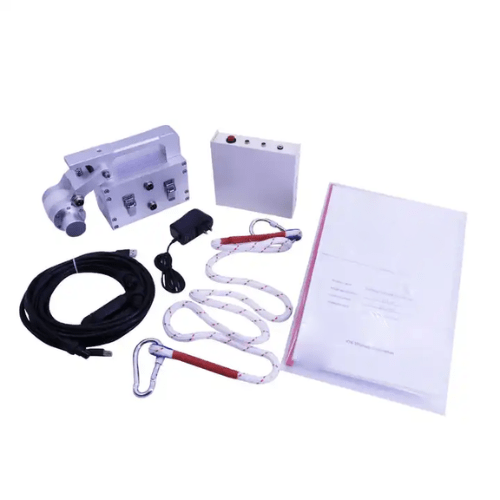

GAO Tek flaw detector is a virtual instrument technology, that replaces the traditional instruments with software, directly sampled and processed by the computer, so as not to miss, not false, like watching movies, a full scan of the steel wire rope, the result is accurate, repeatable. Three according to the regulations of wire rope in different sectors of the scrapping of the national standards, the product application of qualitative, quantitative, electromagnetic positioning, online non-destructive testing of wire rope broken wires, internal and external corrosion, abrasion, metallic cross-sectional area changes, loose strands, jump wire, deformation, material anomalies such as defects.
Features
- High resolution display
- Precise detection capabilities
- User-friendly interface
- Advanced pulser technology
- Digital signal processing
- Internal data logger
- Gage View interface program
- Test block and couplet
Technical specifications
| Qualitative wire detection | 99.99 % |
| diameter | 0.87 in to 23 in (8 mm to 44 mm) |
| Environment temperature | 14 ° F to 131° F (-10℃ to 50℃) |
| Sensor weight | 7.9 lb (10kg) |
| Power supply | 5 V |
| Position (L) detection capability | + 0.2% |
| The sensitivity of detection repeatability error | ± 0.05% |
| Power | Built-in lithium battery |
| size | 11.81 in x 18.11 in x 19.69 in (300 mm x 460mm x 500 mm) |
