Overview

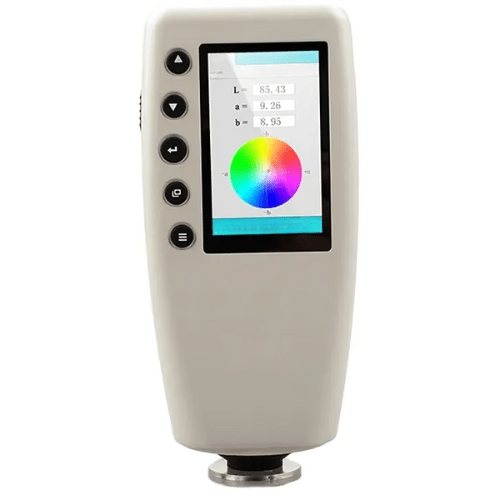

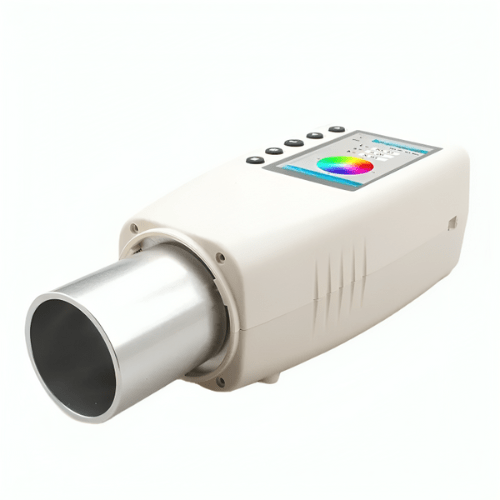

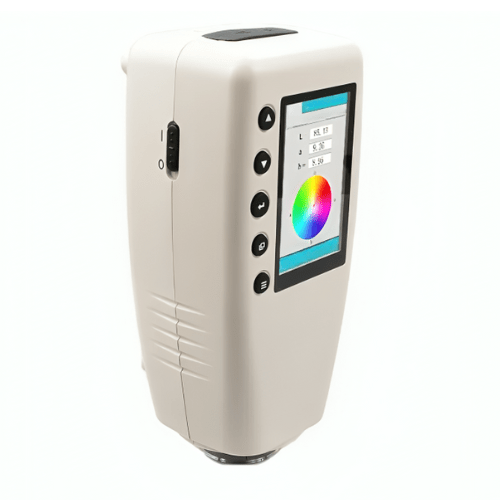

Emissions and Stack food printing oil colorimeter is a professional colorimeter designed and produced subject to the relevant standards of International Commission on Illumination (CIE) and national stands. Being with brand new imported key components, the instrument is well designed and features in precision, stability, easy handling, easy to learn and cost-effective.The instrument applies to the color quality control, color difference control, color difference analysis, sampling testing and online testing for industries as textile, printing and dyeing, garments, shoes, leather, chemical, plastic, pigment, paint, ink, printing, metal, photography and toys etc., as well as to the auxiliary color matching during the processes as injection, inking, painting and spraying coating etc. At present, most of the colorimeters on the market are difficult to measure liquid, given this, we specially develops multifunctional testing accessories to achieve the color measurement on liquid, pulp and large powder. Colorimeter with multifunctional testing accessories can measure colored liquid, coating, pulp and large powder.
Features
- Versatile applications in various industries for color control
- Ideal for textile, printing, dyeing, clothing, plastics, and more
- Precise color measurement on different surface types
- Suitable for small, flat, textured, and rough materials
- Extensive use in laboratories for color analysis and testing
- Enhances color matching and management with analysis software
Technical Specifications
| Color Difference Formula | E x ab ELCH |
| Measurement Caliber | 1.57 in or 0.31 in or 0.16 in (Φ40 mm or φ8 mm or φ4 mm) Alternative |
| Illumination | Condition CIE Recommendation8 or d |
| Standard Accessories | AC adapter or 3000 mAh Li-ion battery or User manual or Warranty card. Or USB data line or Color-analysis software |
| Measurement Interval | 0.5 Sec |
| Observer | CIE 10° Standard observer |
| Measurement Range | L 0 to 100 |
| Repeated Accuracy | E < 0.06 |
| Table Difference | E < 0.2 |
| Lifetime of Bulb Humidity Range Relative humidity less than 85%, without condensation | 5 years more than 1.6 million measurements |
| Display | Screen TFT true color 7.11 cm (2.8 inch) at (16:9) |
| External Interface | USB2.0 (USB-B) RS-232 (115200bps) |
| Working Temperature Range | 32 ℉ to 104 ℉ (0 ℃ to 40 ℃) |
| Storage Temperature Range | – 4 ℉ to 122 ℉ (- 20 ℃ to 50 ℃) |
| Battery Charging Time | 8 hrs |
| Battery | Li-ion battery, 5000 times Measurement |
| Working Temperature Range | 32 ℉ to 104 ℉ (0 ℃ to 40 ℃) |
| Storage Temperature Range | – 4 ℉ to 122 ℉ (- 20 ℃ to 50 ℃) |
| Size | 7.83 in x 2.68 in x 3.54 in (199 mm x 68 mm x 90 mm) |
| Weight | 24.69 oz (700 g) |
