Overview

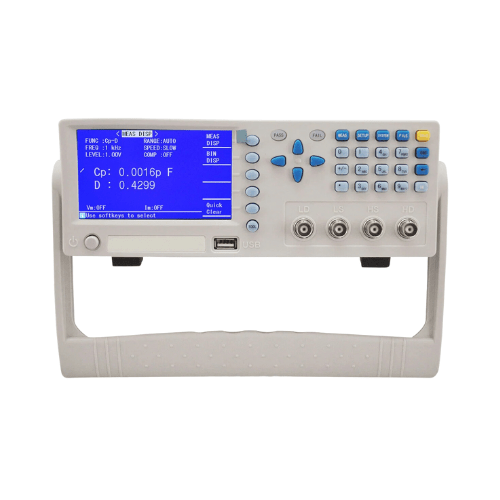

Emissions And Stack frequency points LCR meter is a digital LCR meter for inspection of all kinds of electronic components, using 4.3 in (109.22) LCD TFT display, It is a high-speed and 6-bit test resolution of the impedance measuring instrument, multi-frequency points, and 0.1 % accuracy can meet the requirements of various occasions’ component parameters detection and It is a high cost of quality testing equipment.
Technical Specifications
| Parameters | L, C, R, | Z|, D, Q, X, ESR, θ(Deg), θ(Rad) |
| Display mode | Direct, Δ %, V per I |
| Basic accuracy | 0.1 % ± 5 dgt |
| Frequency | 40 Hz to 200 kHz |
| Source resistance | 30 Ω, 100 Ω |
| Range | Auto, Hold, Manual selection |
| Comparator | 5-bin sorting |
| Signal level | 0.1 V,0.3 V,1V 50 mV,0.1 V, 0.2 V, 0.25 V, 0.3 V,0.4 V, 0.5 V, 1 V |
| Trigger mode | INT, MAN, EXT, BUS |
| Speed | 30 times per second, 10 times per second, 3 times per second, 1-255 times average is available |
| Adjustment | Open or short or shortcut |
| Files | U disk copy screen, real-time data storage, which can support the FAT16 format, FAT32 file system |
| Interface | U disk copy screen, real-time data storage, which can support the FAT16 format, FAT32 file system |
| Power supply | Voltage: 110 V or 220 V; Frequency: 50 Hz to 60 Hz |
| Size | 10.4 in x 3.93 in x 13.3 in (265 mm x 100 mm x 340 mm) |
| Weight | 7.71 lb (3.5 kg) |
