Overview

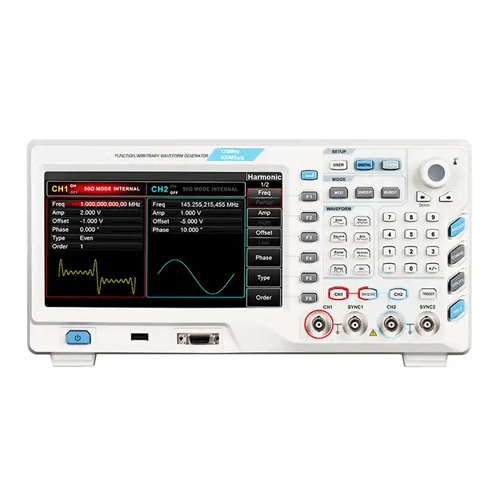

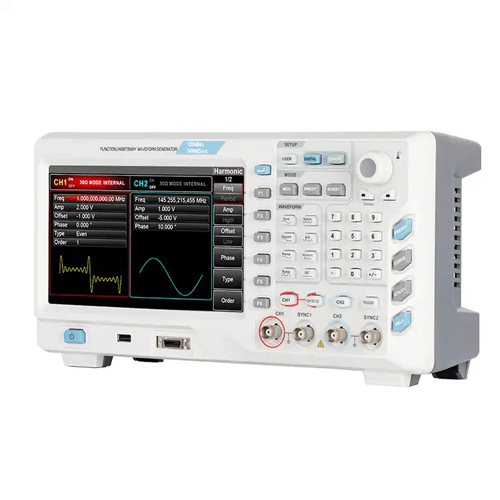

Emissions And Stack function generators is a multifunctional signal generator that combines function generators, arbitrary waveform generator, pulse generator, harmonic generator, analog or digital modulator, frequency counter and other functions. It has equal performance dual-channel design, making sample rate up to 500MS/s, maximum arbitrary wavelength up to 32 Mpts. It has 7 GB nonvolatile waveform storage, domestically first optional digital signal generator output module, 8 in (20.3 cm) wide screen LCD displays, humanized interface design and reasonable function keyboard layout, which give users a more personalized experience.
Features
- 500 MS/s sampling rate and 16-bit vertical resolution
- 32 Mpts arbitrary or 7 GB nonvolatile waveform storage
- Modulations available: AM, FM, PM, ASK, FSK
- PSK, BPSK, QPSK, OSK, PWM, SUM, QAM
- 80 MHz or 120 MHz or 160 MHz sine wave output
- 30 MHz or 40 MHz or 50 MHz pulse waveform
- Adjustable rise or fall time
- Two equivalent performance channels
Technical Specifications
| Bandwidth | 120 MHz |
| Channels | 2 |
| Sampling Rate | 500 MS/s |
| Waveforms | Sine, square, ramp, harmonic, pulse, noise, DC voltage, arbitrary |
| Working Modes | Output on or off, continuous, modulation, sweep, burst |
| Modulations | AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM |
| Frequency Characteristics | |
| Sine | 1 μHz to 120 MHz |
| Square Pulse | 1 μHz to 40 MHz |
| Slope | 1 μHz to 3 MHz |
| Harmonic | 1 μHz to 60 MHz |
| Noise (-3 dB) | 120 MHz bandwidth |
| Resolution | 1 μHz |
| Arbitrary Waveform | |
| Frequency Range | 1 μHz to 30 MHz |
| Length | 8 Mpts to 32 Mpts |
| Vertical Resolution | 16 bits |
| Min Rises Fall Time (Typical: 1 Vpp) | <6 ns |
| General Characteristics | |
| Power | 100 V to 240 V AC rms, 50 Hz or 60 Hz |
| Display | 8 in (20.3 cm) TFT LCD, WVGA (800 x 480) |
| Color | White and grey |
| Size | 3.2 in x 6.4 in x 4.2 in (336 mm x 164 mm x 108 mm) |
| Weight | 7.7 lb (3.5 kg) |
