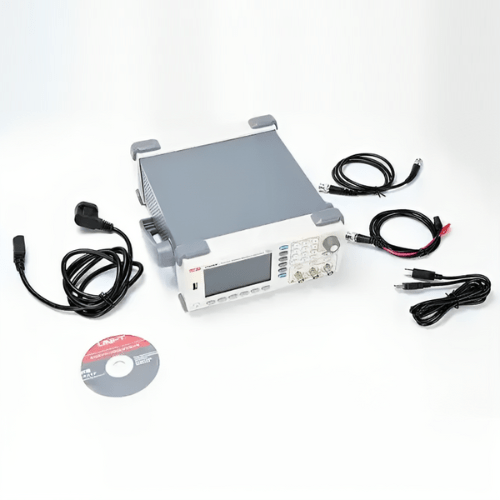

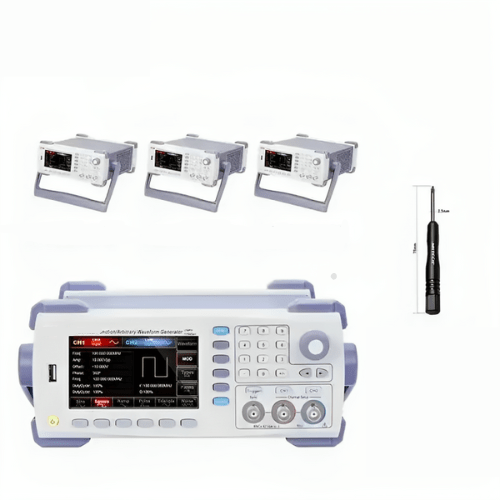

Overview
Emissions And Stack generator logic analyzer has Designing, testing, troubleshooting, and repairing of electronic and electroacoustic devices, such as circuit and equipment testing in cellular and wireless systems, broadcasting, television and radio systems; semiconductor component testing etc.
Features
- 1 μHz full-band resolution
- 5 MHz to 30 MHz pulse waveform, adjustable rise or fall time
- 14-bit or 16-bit vertical resolution
- Two equivalent-performance channels
- Max arbitrary waveform length of 8 k or 16 M points; 48 or 161
- non-volatile waveforms storage
Technical Specification
| Bandwidth | 60 MHz |
| Channels | 2 Channels |
| Sample Rate | 1.28 GS or s |
| Channels | 2 |
| Sampling Rate | 320 MS or s |
| Waveforms | Sine, square, ramp, pulse, noise, DC, arbitrary; UTG2000B only: harmonic |
| Working Modes | Output on or off, continuous, modulation, sweep, burst |
| Modulations | AM, FM, PM, ASK, FSK, PSK, PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM |
| Length | 8 pts to 16 Mpts |
| Vertical Resolution | 16 bits (symbol included) |
| Sine | 1 μHz to 60 MHz, 1 μHz to 80 MHz,1 μHz to 120 MHz |
| Square | 1 μHz to 25 MHz, 1 μHz to 25 MHz,1 μHz to 30 MHz |
| Pulse | 1 μHz to 20 MHz, 1 μHz to 25 MHz,1 μHz to 30 MHz |
| Ramp | 1 μHz to 3 MHz, 1 μHz to 4 MHz, 1 μHz to 5 MHz |
| Harmonic | 1 μHz to 30 MHz,1 μHz to 40 MHz, 1 μHz to 60 MHz |
| Arbitrary | 1 μHz to 15 MHz, 1 μHz to 20 MHz, 1 μHz to 25 MHz |
| Noise | 60 MHz (-3 dB), 80 MHz (-3 dB), 120 MHz (-3 dB) |
| Resolution | 1μHz |
| Accuracy | ±0.5 ppm 77 ℉ (25 ℃) |
| First year aging rate: 1 ppm | |
| Temperature coefficient: ±0.5 ppm or ℃ | |
| Temperature Coefficient | <2 ppm or 35.6 ℉ (2 ℃) |

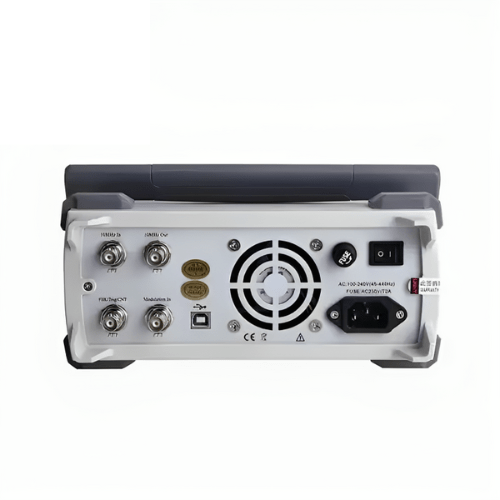

| Interfaces | USB Host, USB Device, 10MHz clock source input or output |
| Power | 100 V to 240 V ACrms, 50 Hz or 60 Hz |

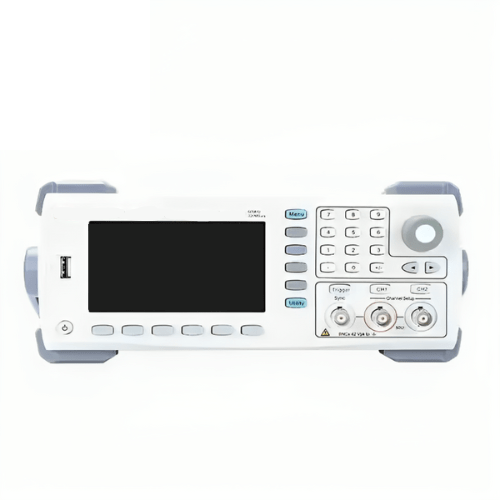

| Display | 4.3 in (10.9 cm) TFT LCD, WVGA (480 pixels x 272 pixels) |
| Product Net Weight | 7 lb (3.2 kg) |
