Overview

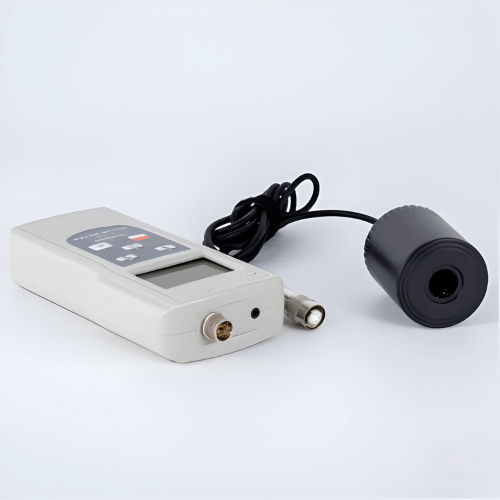

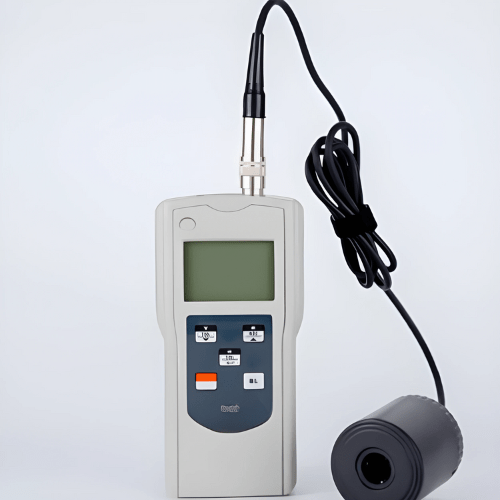

Emissions and Stack handheld digital colorimeter is an extremely compact, extremely easy-to-use tristimulus color meter specially designed for measuring the color difference between two colors. The meter is designed for measuring the color of no lighting and non-unresent samples such as textile, paper, leathers, painting materials, etc. It is a useful tool for quality control and wide industrial application.
Features
- The measuring head of meter need to touch with color sample
- Without any distance
- Color difference displayed (L x, a x, b x), (E x ab, C x ab, H x ab), (Y, x, y)
- Color space displayed (L x, a x, b x), (L x, C x ab, hab), (Y, x, y), (X, Y, Z)
- Statistical function (Maximum, Minimum, Average and Standard Deviation)
- Color difference tolerance set to perform PASS or WARN or FAIL
- Store 9 color-difference target colors
- User calibration function ensures higher accuracy
- Auto memory (99 sets) and Read function
- Digital back light display
- Auto power off function
- Use USB data output and RS-232 data output with connection PC
Technical Specifications
| Auto power off | Approx. 3 minutes |
| Data memory capacity | 99 set. (Direct reading from LCD display) |
| Operating Humidity | <85% RH |
| Storage Humidity | <70 % RH |

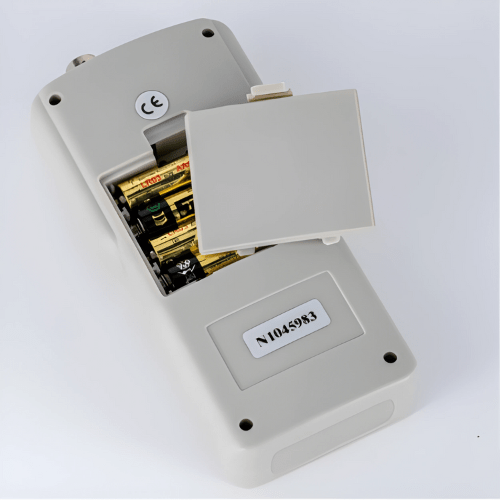

| Power source | 4 x 1.5 AAA (UM-4) Battery |
| Illuminating or Viewing geometry | 45° or 0°, Illumination at 45°, measurement at 0° |
| Illuminant | White LED lamp |
| Measuring area | Approx. 0.39 in (Φ 10 mm) |
| Display modes | Color difference, (L x, a x, b x), (E x ab, C x ab, H x ab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw) |
| Operating Temperature | Color space (L x, a x, b x), (L x, C x ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw) |
| Target color memory | 9 channels, set by measurement or keypad |
| Measuring range | L x, 5 to 100 |
| Measurement conditions | Observe, CIE 2° Standard Observer |
| Repeatability | Standard deviation within E x ab 0.5, (Measurement conditions, Average of measurements of standard white plate) |
| Measurements interval minimum | Approx. 2 sec |
| Display | Triple 4-digit LCD Display |
| Operating Temperature | 32 °F to 104 °F (0 ℃ to 40 °C) |
| Storage Temperature | 14 °F to 104 °F (-10 ℃ to 40 °C) |
| Dimensions | Main unit, 5.5 in x 2.7 in x 1.2 in (140 mm x 70 mm x 31 mm), Sensor, 1.7 in x 2.1 in (Φ 44 mm x Φ 55 mm) |
| Weight | 7.2 oz (205 g) (not including battery) |
