Features
- Adopt high performance 32-bit ARM microprocessor control
- Ultra-low power consumption and density SMD assembly technology

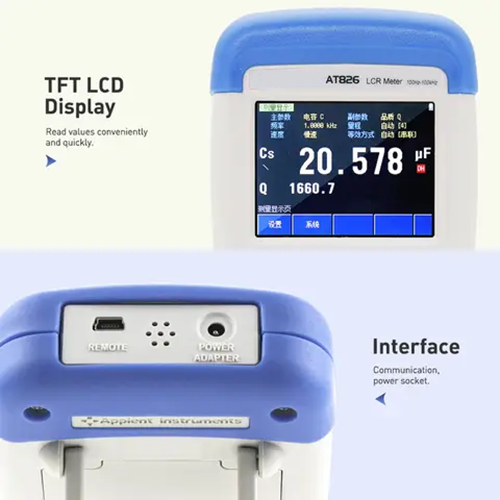

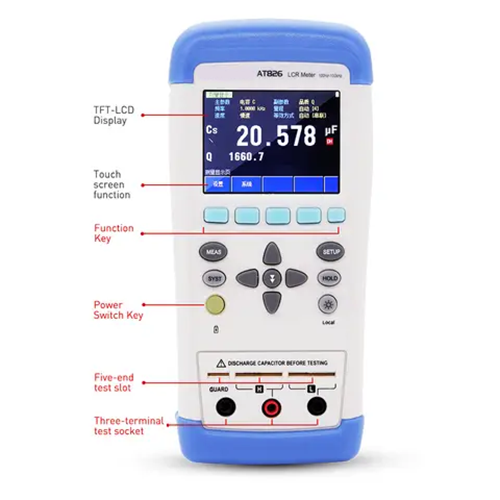

- Color TFT-LCD display with keyboard, touch screen double control
- Adopt Li-battery, USB communication and English operation
- Test frequency from 100 Hz to 100 KHz
- Constant 100Ω internal resistance and 0.6Vrms test signal level with 0.2 % accuracy
Technical Specifications
| Parameters | L, C, R, Z Auto |
| Sub Parameters | OFF, AUTO, D, Q, θr, |
| θd, X, ESR | |
| Accuracy | 0.20 % |
| Frequency | 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz |
| Source Resistance | 100 Ω |
| Range | Auto, Manual |
| Max Display | Principle parameter: 49999 |
| sub parameter: 49999 | |
| Signal Level | 0.6 Vrms, accuracy ± 10 % |
| Speed | 4 t/s, 1.5 t/s |
| Comparator | 1 set, main parameter compare, beep |
| Power Supply | input: 100 V to 240 V to 50 / 60 Hz 0.35 A |
| output: 9 V 1 A DC | |
| Battery Parameter | 8.4 V, Li, 1400 mAh rechargeable |
| Charging Time | Max single continuous: 200 Min |
| Working Time | Highlight 30 % ≥ 14 H, highlight 50 % ≥ 11 H, |
| Highlight 100 % ≥ H | |

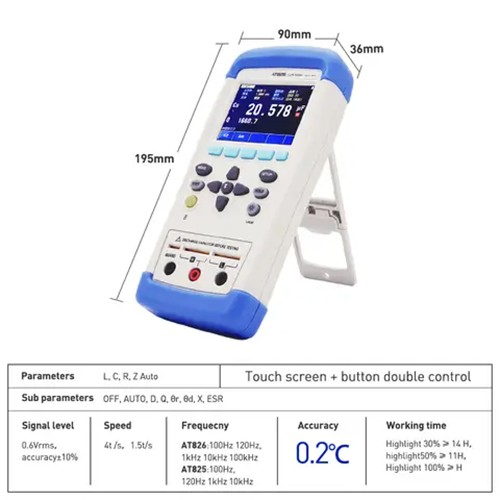

| Sizes | 3.54 in x 7.67 in x 1.39 in (90 mm x 195 mm x 35.5 mm) |
| Weight | 0.88 lb (400 g) |
