Overview

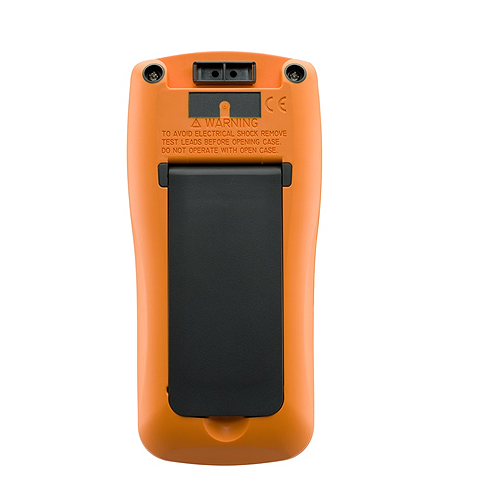

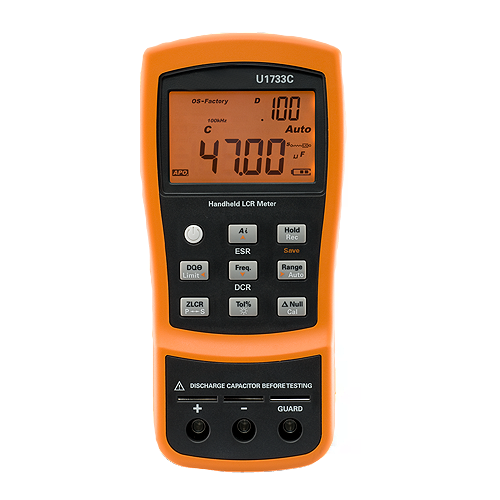

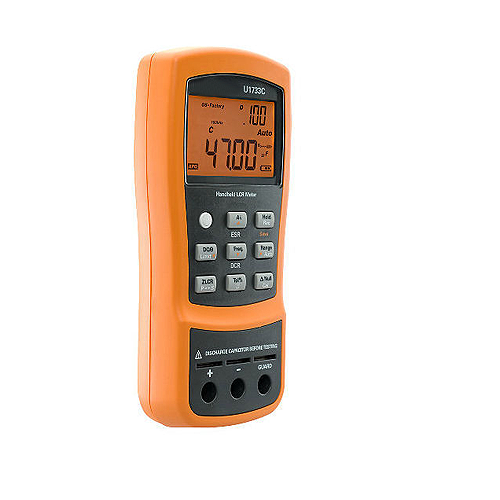

Emissions And Stack handheld LCR meter allows measurement at frequencies as high as 100 kHz, a capability typically found only in benchtop meters. Get measurements done faster using the one-touch automatic identification function button, which displays component type and provides more detailed component analyses such as Z, ESR, and DCR. Ideal for testing on the go, these LCR meters operate on a battery that lasts up to 16 hours. With this product built for your convenience, you can perform quick and basic LCR measurements at an affordable price.
Features
- Frequency up to 100 KHz
- Automated identification
- Wide LCR ranges
- 3 selectable test frequencies
- Basic LCR measurements affordably
- Detailed component analysis with DCR, ESR, Z, D, Q functions
- IR to USB connectivity for data logging to PC
- Battery life to 16 hrs
- Backlit, dual measurement display
Technical Specifications
| Max Test Frequency | 100 kHz |
| Max Capacitance | 20 mF |
| Max Resistance | 200 MΩ |
| Max Resistance | 2000 H (2000000 MH) |
| Impedance Accuracy Range | 0.2% |
| Counts | 20000 counts |
| Measurements Parameters | Capacitance (C), DC Resistance (Rdc), Dissipation Factor (D), Impedance (Z), Inductance (L), Phase Angle (θ), Quality Factor (Q) |
