Overview

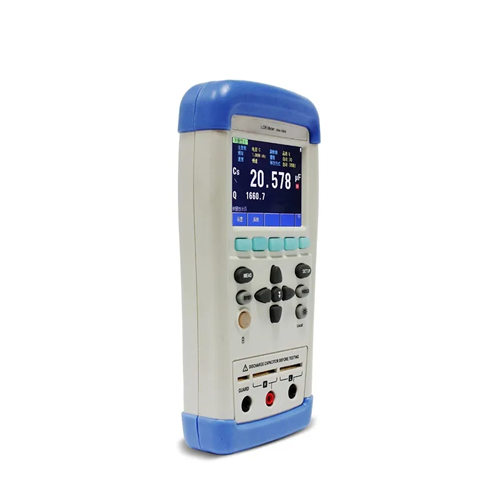

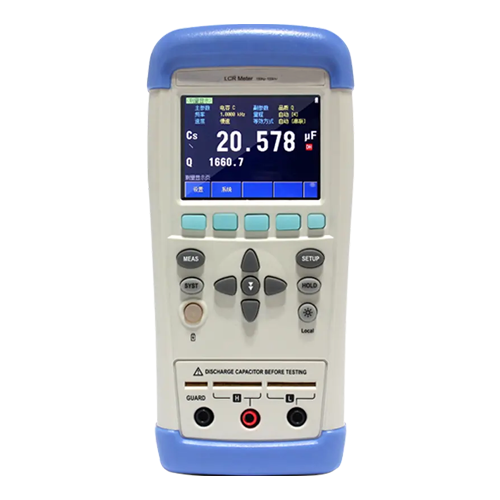

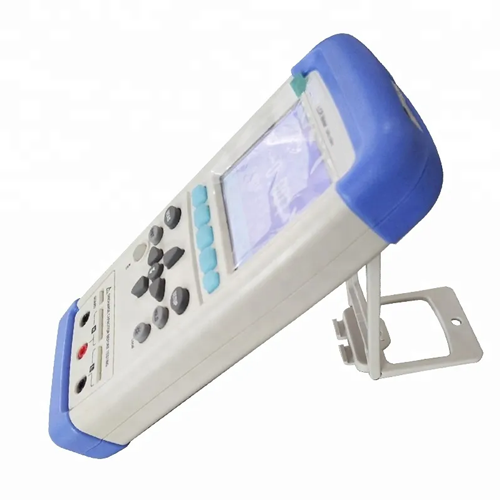

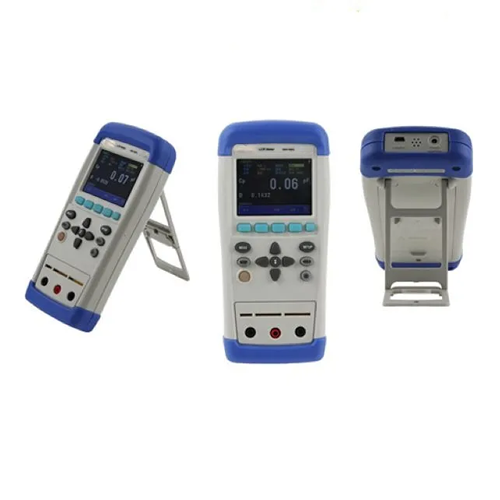

Emissions And Stack handheld LCR Digital electric bridge adopts high performance 32-bit ARM microprocessor. True-color TFT liquid crystal display, keypad and touch screen double control. Using Li- battery supply power. USB communication. Switch in both English and Chinese. This LCR digital meter has the excellent performance of both desktop instrument and portability of handheld.
Technical Specifications
| Customized support: | OEM, ODM, OBM |
| Frequency: | 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz |
| Accuracy: | 0.2 % |
| Range: | Automatic and manual |
| Interface: | Build-in Mini-USB interface (virtual serial), charging interface |
| Input: | 100 V to 240 V, 50 Hz or 60Hz, 0.35 A |
| Max Reading: | Main parameters: 49999Sub parameters: 49999 |
| Speed: | 4 times/second, 1.5 times/second |
| Comparator: | One group record, main parameters compare |
| Source Resistance | 100 Ω |
| Range | Automatic and manual |
| Max Reading | Main parameters: 49999 Sub parameters: 49999 |
| Signal Level | 0.6 Vrms |
| Speed | 4 times/second, 1.5 times/second |
| Comparator | One group record, main parameters compare |
| Source Resistance | 100 Ω |
| Adapter | Input: 100 V to 240 V 50 / 60 Hz 0.35 An Output: 9 V 1A DC |
| Battery parameters | 8.4 V, Li, 1400mAh rechargeable battery, |
| Charging Time | single continuous charging time: Max 200Min |
| Working Time | Light 30%, over 14 hours, Light 50% over 12 hours,light 100%, over 9 hours |
| Dimensions | 3.54 in x 7.48 in x 1.22 in (90 mm x 190 mm x 31 mm) |
