Technical Specifications
| Distance Range | 0.06 mi, 0.3 mi, 1.2 mi, 3.1 mi, 6.2 mi, 12.4 mi, 24.8 mi, 49.7 mi (100 m, 500 m, 2 km, 5 km, 10 km, 20 km, 40 km, 80 km) |
| Optical Port | FC or SC |
| Sampling Resolution | Minimum 0.65 ft (0.2 m) |
| Sampling Point | 64,000 points |
| Linearity | ≤ 0.05 dB/dB |
| Loss Threshold | 0.01 dB |
| Loss Resolution | 0.001 dB |
| Distance Resolution | 0.01 m |
| Distance Accuracy | ± (0.5 m + test distance × 3 × 10 – 5 + sampling resolution) (excluding refractive index error) |
| Data Storage | More than 40,000 test curves |

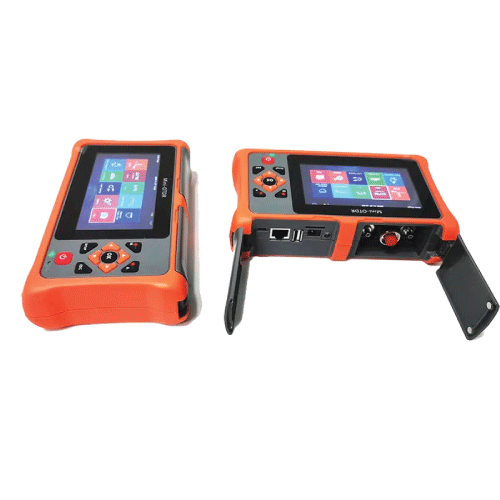

| Data Interface | 2 USB ports (Type A × 1, Micro usb × 1), SD card |

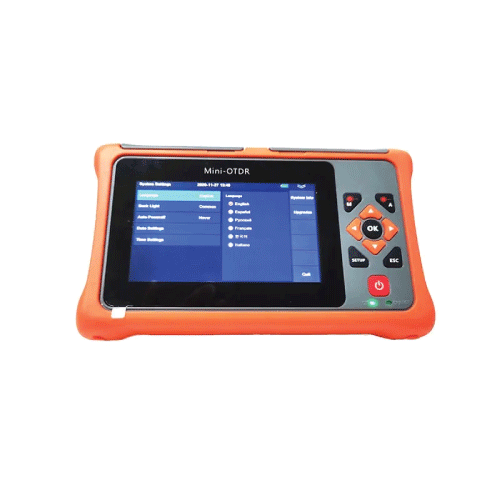

| Monitor | 4.3-in TFT-LCD (standard capacitive touch screen) |
| Battery | 3.7 V or 5200 mAh |
| Temperature | Working temperature: -14 °F to 131 °F (-10 ℃ to 55 ℃)
Storage temperature: -4 °F to 176 °F (-20 ℃ to 80℃) |
| Humidity | ≤ 95 % (non-condensing) |
| CPU Frequency | 1 GHz, equipped with 1 G DDR and 2 G memory card |
| Dimension and Weight | 6.88 in × 4.13 in × 1.77 in (175 mm x 105 mm x 45 mm)
1.1 lb (0.5 kg), with battery |

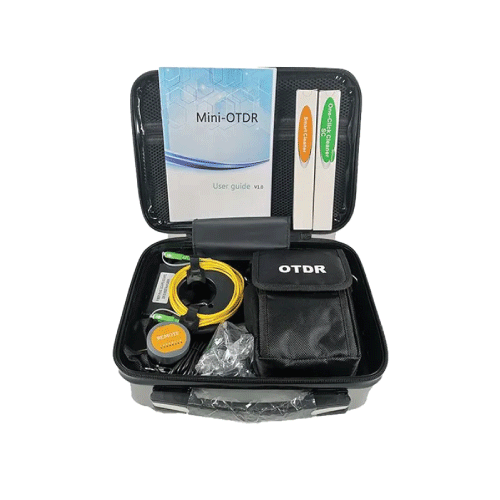

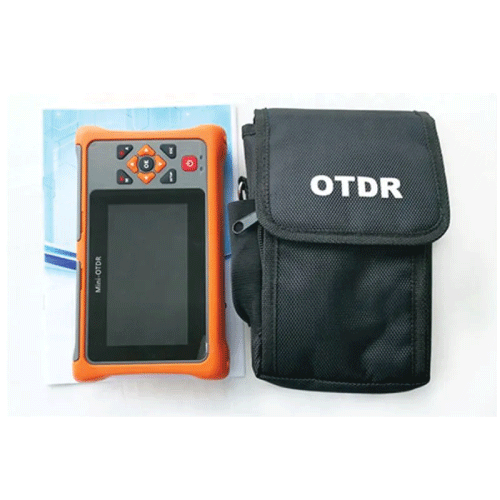

| Accessories | Power adapter, Lithium battery, FC adapter, USB cable, Quick guide, Carrying bag |
| Optical Power Meter | Type A: -70 dBm to +10 dBm; Type B: +26 dBm to -50 dBm |
| Stable Light Source | Output power: -5 dBm, modulation frequency: CW or 270 Hz or 1 KHz or 2 KHz |
| Visual Fault Locator | 10 mW, CW or 2 Hz |
| Network Cable Test Terminal | Support network cable sequence test and pairing |
