Overview

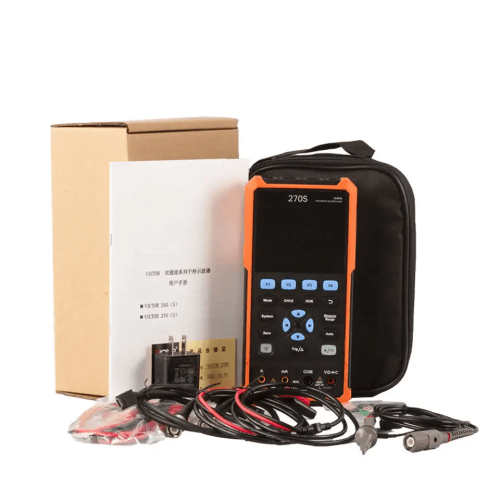

Emissions And Stack handheld oscilloscope multimeter is a new oscilloscope, it is recommended that you should make a check on the instrument according to the following steps. Check whether there is any damage caused by transportation. If it is found that the packaging carton or the foamed plastic protection cushion has suffered serious damage, do not throw it away first till the complete device and its accessories succeed in the electrical and mechanical property tests. Check the Accessories. The supplied accessories have been already described in the “Appendix A: List of Accessories” of this Manual. You can check whether there is any loss of accessories with reference to this description. If it is found that there is any accessory lost or damaged, please get in touch with our distributor responsible for this service or our local offices. Check the Complete Instrument If it is found that there is damage to the appearance of the instrument, or the instrument cannot work normally, or fails in the performance test, please get in touch with our distributor responsible for this business or our local offices. If there is damage to the instrument caused by the transportation, please keep the package. With the transportation department or our distributor responsible for this business informed about it, a repairing or replacement of the instrument will be arranged by us.
Features
- Multifunctional integration of oscilloscope

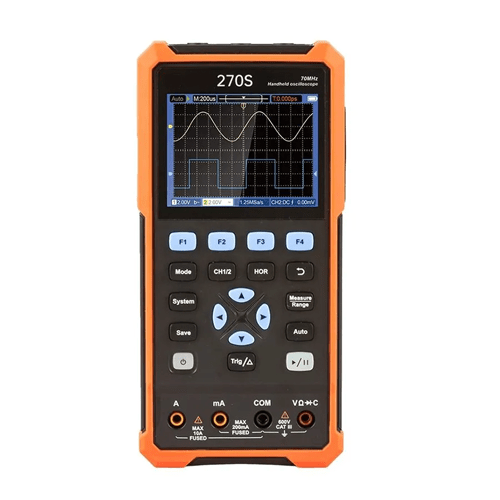

- 5 inch high resolution, high contrast color LCD display
- 18650 Lithium battery, comprehensive power consumption

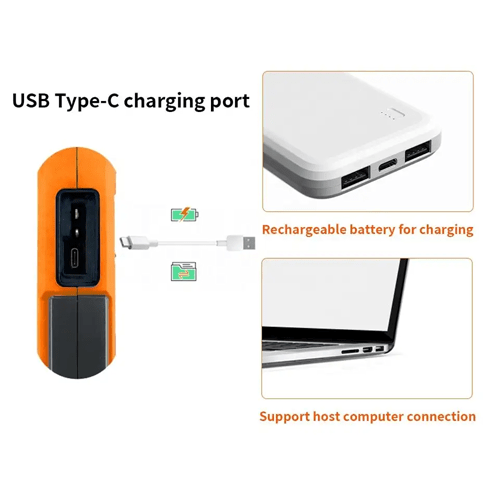

- USB Type C interface, Support power bank supply
- Self Calibration Function
- Support SCPI communication function to facilitate secondary development
Technical Specifications
| Display type | 3.5 inch color LCD display |
| Display resolution | 320 pixels × 240 pixels |
| Display color | 65536 colors |
| Display Contrast | Adjustable |
| Power supply | 100 240 VACRMS, 50/60 Hz, CAT Ⅱ DC INPUT: 5VDC, 2A |
| Battery | 2200 mAh x 2(3.7 V,18650) |
| Relative humidity | ≤90% |
| Height | Operating 1.86 miles (3,000 m) Nonoperating: 9.32 miles (15,000 m) |
| Cooling method | Natural cooling |
| Storage temperature | 68 °F to 104 °F (20 ℃ to +60 ℃) |
| Temperature | 32 °F to 104 °F (0 ℃ to 40 ℃) |
| Dimensions | 7.79 in x 3.78 in x 1.48 in (198 mm × 96 mm × 38 mm) |
| Weight | 1.322 lb (0.6 kg) (main unit, without battery) |
