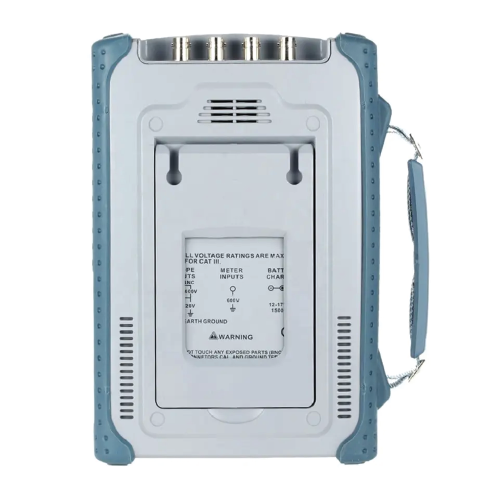

Features
- High Bandwidth: 60 MHz Oscilloscope
- 6000 COUNTS DMM
- Separated GND Reference
- Hardware Frequency Counter
- Arbitrary Waveform Generator: 25 MHz
- FFT, Auto Measurements, PASS or FAIL Check
- High Refresh Rate
- Real-time Sample Rate up to 2 GSa or s
- Multiform Trigger Mode, Dual Time Base in ALT Trigger
- Save or Record 1000 Waveforms
- Excellent Industrial Design, Direct Keys for Easy Operation
- 7 in (14.5 cm) TFT Color LCD Display with LED backlight
- USB Host or Device 2.0 Interface, LAN Option
- Battery Powered, Industrial Design for Portability
- Save Waveforms as jpg or bmp
- MS Excel or Word files
- Compatible with LabVIEW, VB, VC for Custom Design
Technical specification
| Bandwidth | 60 MHz |
| Channel | 2 |
| Real-Sample Rate | 250 MSa or s |
| Equivalent Sample Rate | 50 GSa or s |
| Record Length | 32 K |
| Rish time | ≤ 5.8 ns |
| Timebase Accuracy | ± 50 ppm |
| Time Base Range | 5 ns or div to 1000 s or div |
| Input Impedance | 1 MΩ ΙΙ 15 pF |
| VOLTS/DIV Range | 10 mV or div to 5 V or div |
| A/D Converter | 8 bit |
| Position Range | ± 50 V (5 V or div), ± 40 V (2 V or div to 500 mV or div), ± 2 V (200 mV or div to 50 mV or div), ± 400 mV (20 mV or div to 2 mV or div) |
| DC Gain Accuracy | ± 3 % for Normal or Average acquisition mode, 5 V or div to 10 mV or div; ± 4 % for Normal or Average acquisition mode, 5 mV or div to 2 mV or div |
| Bandwidth Limit | 20 MHz |
| Trigger Types | Edge, Video, Pulse, Alternative |
| Trigger Source | CH 1, CH 2 |
| Waveform Frequency | DC to 25 MHz |
| DAC Clock | 2 K to 200 MHz adjustable |
| Frequency Resolution | 0.10 % |
| Channel count | 1 CH waveform output |
| Waveform Depth | 4 KSa |
| Vertical Resolution | 12 bit |
| Frequency Stability | < 30 ppm |
| Waveform Range | ± 3.5 V Max. |
| Output Impedance | 50 Ω |
| Output Current | 50 mA Ipeak=50 mA |
| System BW | 25 M |
| Harmonic Distortion | -50 dBc (1 KHz), -40 dBc (10 KHz) |
| Frequency Range | DC to 60 MHz |
| Input Range | 400 mVpp to 18 Vpp |
| Coupling Mode | DC |
| Frequency Measurement Accuracy | ± Time Base Error ± 1 Count |
| Input Impedance | > 100 KΩ |
| DMM Max. Resolution | 6,000 Counts |
| Testing Modes | Voltage, Current, Resistance, Capacitance, Diode & Continuity |
| Max. Input Voltage | AC: 600 V, DC: 800 V |
| Max. Input Current | AC:10 A, DC: 10 A |
| Max. Input Impandance | 10 MΩ |
| Display | 5.7 (14.5 cm) TFT Display, 320 x 240 dots |
| Standard Probe | PP80 x 2 |
| Max. Resolution | 6000 Counts |
| DMM Testing Modes | Voltage, Current, Resistance, Capacitance, Diode & Continuity |
| Max. Input Voltage | AC:600 V, DC: 800 V |
| Max. Input Current | AC: 10 A, DC:10 A |
| Input Impedance | 10 MΩ |
| DMM TrendPlot | 1.2 M Point |
| Diode | 0 V to 2.0 V |
| ON-OFF test | < 10 Ω |
| Size | 9.64 in x 6.41 in x 2.04 in (245 mm x 163 mm x 52 mm) |
| Weight | 2.86 lb. (1.3 kg) |
