Overview
Emissions and Stack handheld portable high quality colorimeter includes colorimeters and spectrophotometers. Colorimeters use color sensors to measure colors, because of the huge error, colorimeters are not desired in applications. Now, most national and international leading instrument companies have stopped advertising for colorimeters. Spectrophotometers use spectral analysis to measure the color of objects. They are high accuracy and super stability.
Features
- Uses CLEDs light source – spectrally balanced LED light source
- ETC Every Test calibration technology
- Automatic gloss compensation technology
- Innovative light splitting SCS optical engine
- Camera view, can accurately see the region being tested
- Free Color QC Software
- The most complete and color indicators in similar instruments
- Optional color matching software and find color components quickly
Technical Specifications
| Illumination | D or 8 (Diffused lighting, 8 degrees observe angle), SCI (specular reflection included) or SCE (specular reflection excluded) simultaneous measurement. (conform to CIE No.15, ISO 7724 or 1, ASTM E 1164, DIN 5033 Teil 7, JIS Z 8722 Condition c standards) |
| Size of integrating sphere | Φ 1.57 in (40 mm), Avian diffused reflection surface coating |
| Illumination light source | CLEDs (entire wavelength balanced LED light source) |
| Sensor | dual light path sensor array |
| Wavelength range | 400 nm to 700 nm |
| Wavelength interval | 10 nm |
| Half spectral width | 5 nm |
| Reflectivity range | 0% to 200% |
| Reflectivity resolution | 0.01% |
| Observation angle | 2° or 10° |
| Measurement light source | A, C, D 50, D 55, D 65, D 75, F 1, F 2, F 3, F 4, F 5, F 6, F 7, F 8, F 9, F 10, F 11, F 12, DLF, TL 83, TL 84, NBF, U 30, CWF |
| Data being displayed | spectrum chart or data, sample’s color values, color difference values or graph, pass or fail results, color error tendency, color simulation, display measurement area, history data color simulation, manual input standard sample, generate measurement report |
| Measurement time interval | 2 seconds |
| Measurement time | 1 second |
| Color space | CIE-L cx a x b, L x C x h, L x u x v, XYZ, YXY, Reflectance |
| Color difference formulas | Δ E x ab, Δ E x CH, Δ E x UV, Δ E x CMC (2 1), Δ E x CMC (1 1), Δ E x 94, Δ E x 00 |
| Other colorimetric indices | WI (ASTM E 313 to 10, ASTM E 313-73, CIE or ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby) YI (ASTM D 1925，ASTM E 313 to 00, ASTM E 313 to 73) Tint (ASTM E 313, CIE, Ganz) Metamerism index Milm, Stick color fastness, Color fastness |
| Repeatability | light splitting reflectivity standard deviation within 0.08%, color values Δ E x ab <= 0.03 (After calibration, standard deviation of 30 measurements on test white board, 5 second intervals), Maximum 0.05 |
| Battery capacity | Rechargeable, 10000 continuous tests, 7.4 V or 6000 m Ah |
| Interface | USB |
| Data storage | 20000 test results |
| Light source longevity | 5 years, 1.5 million tests |
| Inter-instrument agreement | Δ E x ab within 0.2 (BCRA color charts II, average of the 12 charts) |

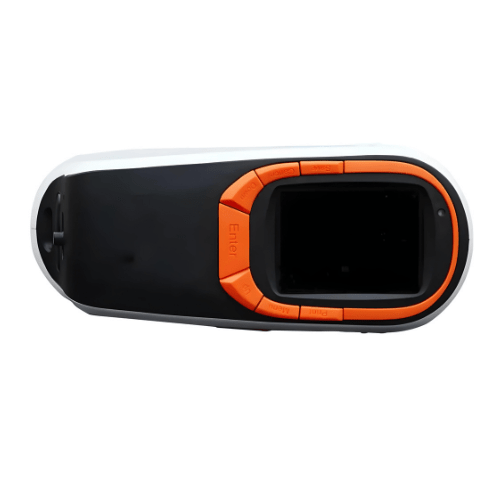

| Display | True color screen that includes all colors |

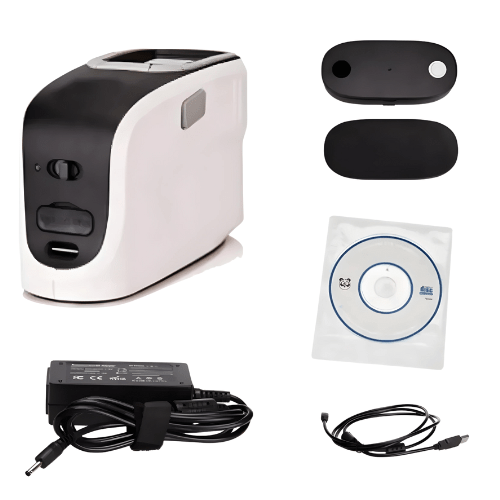

| Standard accessories | DC adapter, Lithium battery, manual, color management software, drive software, electronic manual, color management guide, USB cable, black or white calibration tube, protective cover, spire lamella, portable bag, electronic color charts, measurement and test report |
| Optional accessories | Powder Moulding device, micro printer |
| Color matching system | Not match |
| UV light source | Without UV light source |
| Work temperature range | 32 °F to 113 °F (0 °C to 45 °C), Relative Humidity 80% or below 95 °F (at 35 °C), no condensation |
| Storage temperature range | -13 °F to 131 °F (-25 °C to 55 °C), Relative Humidity 80% or below 95 °F (at 35°C), no condensation |
| Size | 7.13 in x 2.87 in x 4.41 in (181 mm x 73 mm x 112 mm) |
| Weight | 17.63 oz (550 g) (does not include battery’s weight) |
