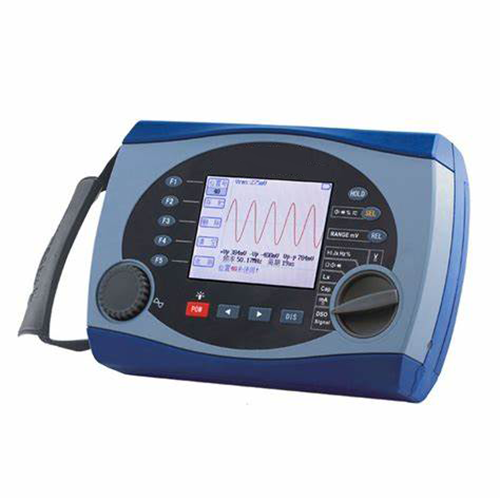

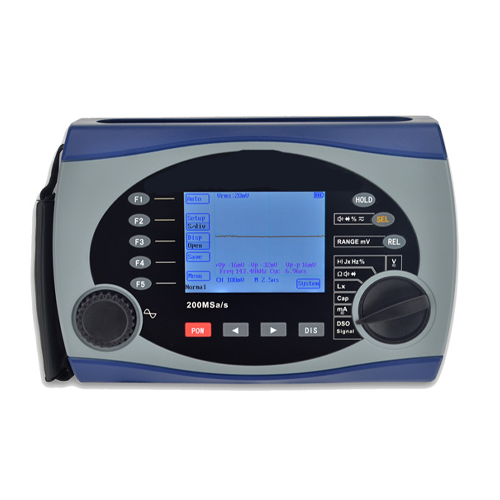

Features
- Bandwidth: 50 MHz
- Sample Rate: up to 100 Msa/s
- 5 in 1 (DOS, DMM, DDS, LCR, Frequency meter)
- Simple channel
- Advanced Trigger Functions
- Automatic Measurement Support
- USB Port for Programming & Data Transferring
- Supply: 100 V to 240 V AC, 50 Hz or 60 Hz
- DC input: 12 V DC, 1600 mA Battery: 3 hrs
- 8 in (9.65 cm) LED
Technical Specifications
| Display | 3.8 in (9.65 cm) LED (320 x 240 pixels) |
| Backlight | white, |
| Battery | Built 1600 mAh Ni-MH battery |
| Power shortages prompted | |
| time | 3 hrs |
| Operation of height | 0 mi to 1.24 mi (0 m to 2000 m) |
| Observation region | 3.07 in x 2.29 in (78 mm x 58 mm) |
| Input Resistance | DMM 10 MΩ, |
| Automatic shutdown | Turned on or off |
| Charging time | About 8 hrs |
| Storage dates | 400 DMM dates and 40 DSO waveform data records |
| Storage conditions | 14 °F to 140 °F (-10 °C to +60 °C) < 90 % RH |
| Power adapter | 110 V to 250 V; 12 V or 1 A |
| Bandwidth | DC 50 MHz (3 dB Bandwidth) Probe x 10 Sample rate (real time) |
| Sample rate | 200 Msps |
| Vertical resolution | 8 bits |
| Non-linearity | ± 1 bit |
| Channel | 1 |
| Coupled mode | DC or AC |
| Input impedance | 1 MΩ or 20 pF |
| Indexing | Vertical ± 4 div level 10 div |
| temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Duty cycle | 10 % to 94.4 % |
| humidity | < 75 % RH |
| Dimension | 7.87 in x 5.51 in x 2.16 in (200 mm x 140 mm x 55 mm) |
| Weight | 1.87 lb (850 g) |
