Overview

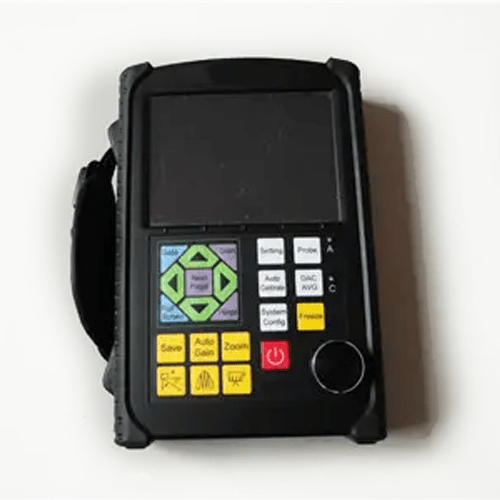

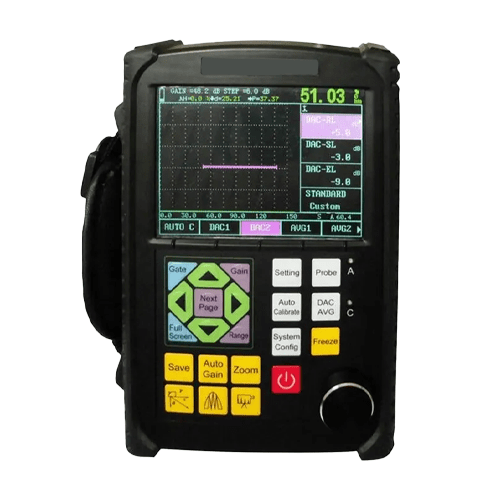

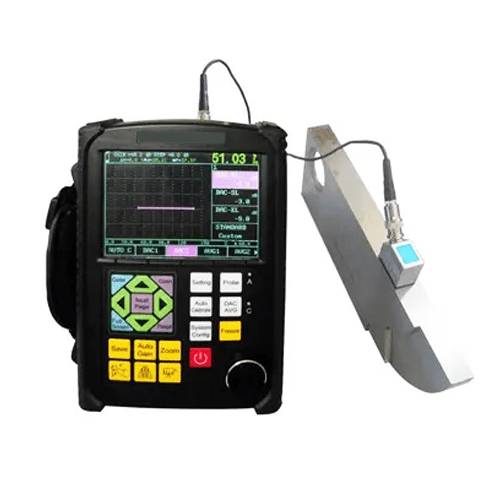

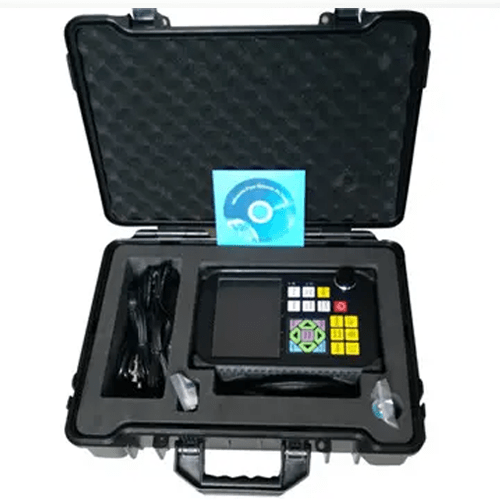

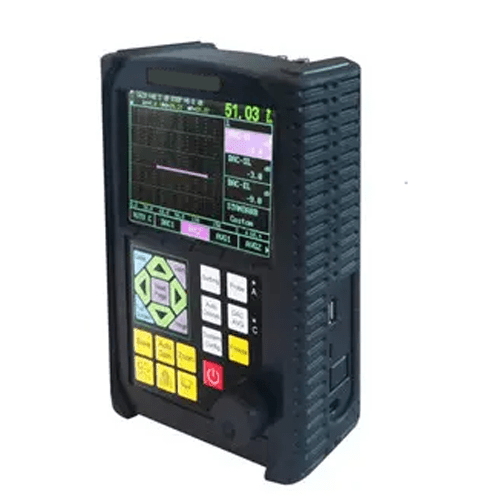

Emissions and Stack Handheld Ultrasonic Flaw Detector is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a workpiece without destruction. It can be used both in a lab and field.
Features
- Automated display of precise flaw location
- Unlimited video time for continuous monitoring
- Automated switching of three staff gauges (Depth, Level, Distance)
- Automated calibration of transducer parameters
- Convenient creation and use of DAC, TCG, and AVG
- Evaluate echoes with adjustable curves and compensation
Technical Specifications
| Measuring Range | 0 in to 393.7 in (0 mm to 10000 mm) |
| Gain | 0 dB to 120 dB |
| D-Delay | 20 µs to 3400 µs |
| Resolution | 0.09 in to 3.93 in (2.5 mm to 100 mm) 3.93 in (> 100 mm) |
| P-Delay | 0 µs to 99.99 µs |
| Sound Speed | 1000 m/s to 15000 m/s |
| Temperature | 50 °F to 122 °F (10 ℃ to 50 ℃) |
| Humidity | 20% to 90% RH |
| Power | Li-battery |
| Working Time | >10 hours |
| Display | LED true color |
| Size | 9.37 in x 6.1 in x 1.81 in (238 mm x 155 mm x 46 mm) |
| Weight | 2.2 lb. (1 kg) |
