Overview

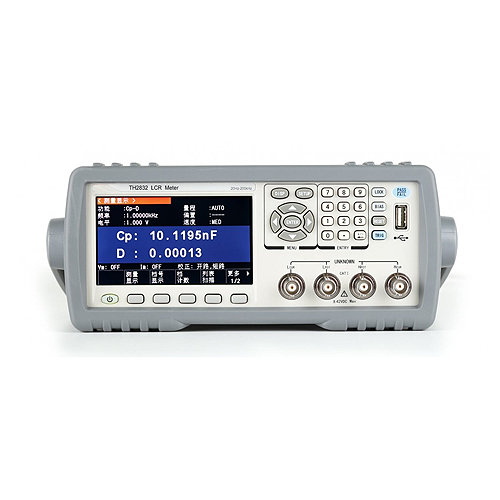

Emissions And Stack high performance digital LCR meter is a new generation of impedance test equipment with high accuracy, wide measurement range and six digits resolution. Being possessed with test frequency up to 200 kHz, test voltage of 10 MV to 2 V, it can meet all requirements for measuring components and materials and provide guarantees for production line quality assurance, incoming inspection and laboratory precision measurements.
Features
- 50 Hz to 200 kHz test frequency
- 0.05% accuracy
- Resolution of 6-digit readings
- 100 points list sweep function
- USB quick save data screen
- Auto LCR function self-demagnetization
Technical Specifications
| Frequency | 50 Hz to 200 KHz, resolution: 10 MHz |
| Signal Level | 5 mV to 2 V, resolution: 1 mV |
| Speed | 75 meas/sec |
| Output Impedance | 30 Ω, 50 Ω, 100 Ω |
| Test Level | 10 mV to 2.0 V, resolution: 10 mV 100 μA to 20 mA |
| Internal DC Bias Source | 0 V to 5 V or 0 mA to 20 mA |
| Comparators | 10 bins, BIN1 to BIN9, NG, AUX |
| Interfaces | RS232C or USB-HOST or USB-CDC or USB-TMC or HANDLER |
| Basic Accuracy | 0.05% |
| Measuring Speed | Fast: 12.5 ms, Med: 83 ms, Slow: 167 ms (meas/sec) |
| Equivalent Circuit | Series and Parallel |
| Range Mode | Auto, ffa200Hold |
| Trigger Mode | Internal, Manual, DUT, External, Bus |
| Parameter | |Z|, C, L, R, X, |Y|, B, R, G, ESR, D, Q, DCR |
| Temperature And Humidity | 32 °F to 104 °F (0 °C to 40 °C), less than 90% RH |
| Voltage | 99 V to 242 V |
| Power | Less than 20 VA |
| Monitor | 4.3 in (10.9 cm) TFT color screen |
| Memory | Internal: 100 groups, External: 500 groups (U-disk) |
| Dimension For Shelves (W × H × D) | 8.46 in x 3.46 in x 12.6 in (215 mm × 88 mm × 320 mm) |
| Dimension (W × H × D) | 9.25 in x 4.13 in x 13.58 in (235 mm × 105 mm × 345 mm) |
| Weight | Approx. 5.51 lb (2.5 kg) |
